Variable Valve Timing Assembly - Installation

INSTALLATION





CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin and camshaft phaser may occur.

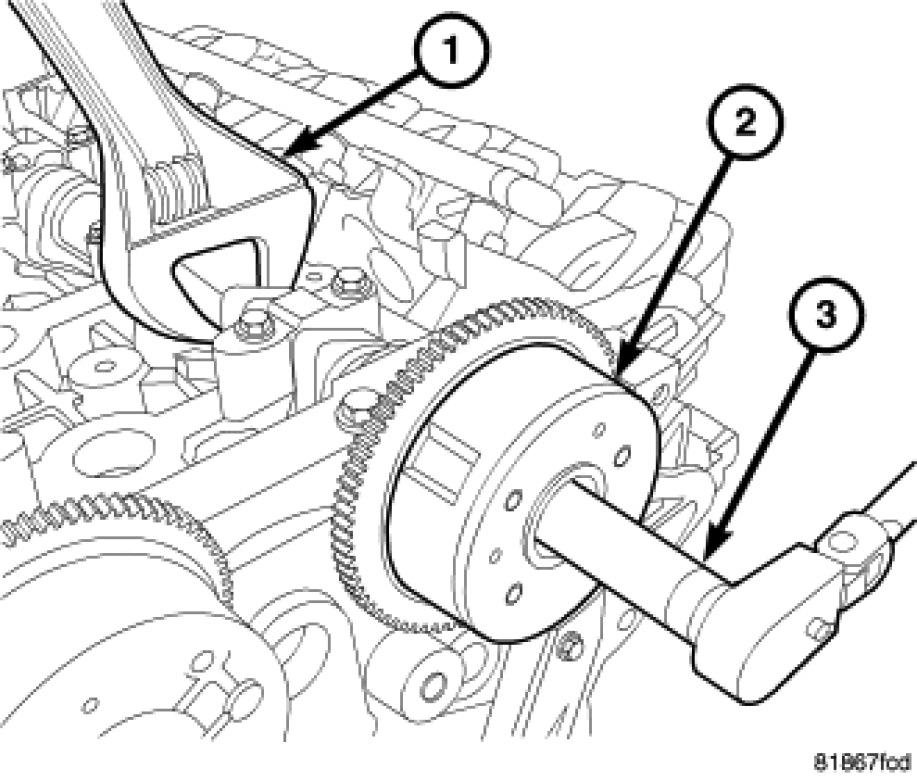

1. Install phaser (2) assembly on camshaft.

NOTE: Make sure the dowel is seated in the dowel hole and not in a oil feed hole. The dowel hole is larger than the 4 oil feed holes.

2. Install phaser retaining bolt and torque while holding camshaft in place with a wrench (1).
3. Install camshaftsCamshaft - Installation.
