Home >> Chrysler >> 2008 >> Sebring Convertible L4-2.4L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Sensors and Switches - Engine >> Oil Pressure Sender >> Service and Repair >> Engine Oil Pressure Sensor/Switch - Removal

Engine Oil Pressure Sensor/Switch - Removal







REMOVAL





1. Raise vehicle.
2. Disconnect electrical connector.

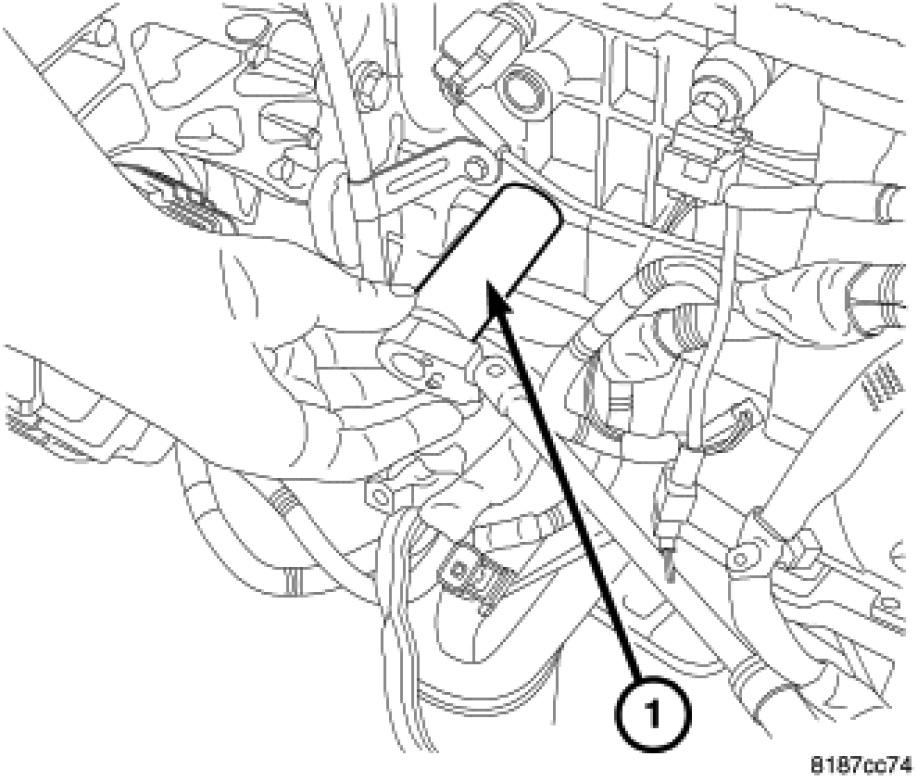

3. Remove oil pressure sensor using oil pressure socket C-4597 (1) and discard sensor.
