Intake Manifold - Removal

INTAKE MANIFOLD

WARNING: Release fuel system pressure before servicing system components. Service vehicles in well ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle.





1. Remove engine cover (1).
2. Perform fuel system pressure release procedure before attempting any repairs Service and Repair.

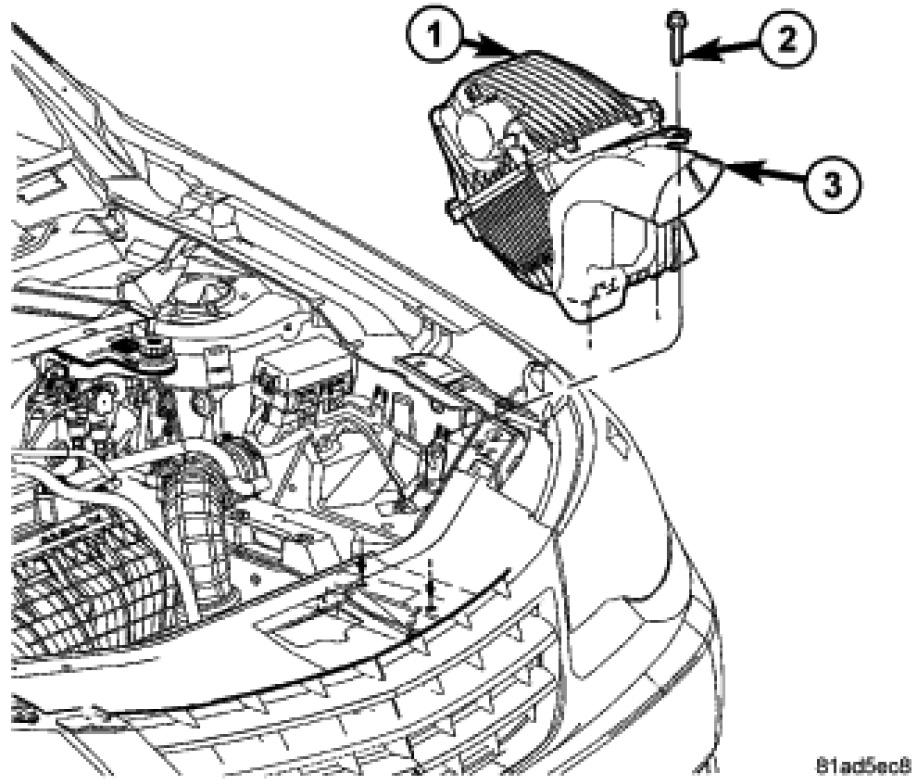

3. Remove air cleaner housing (1).

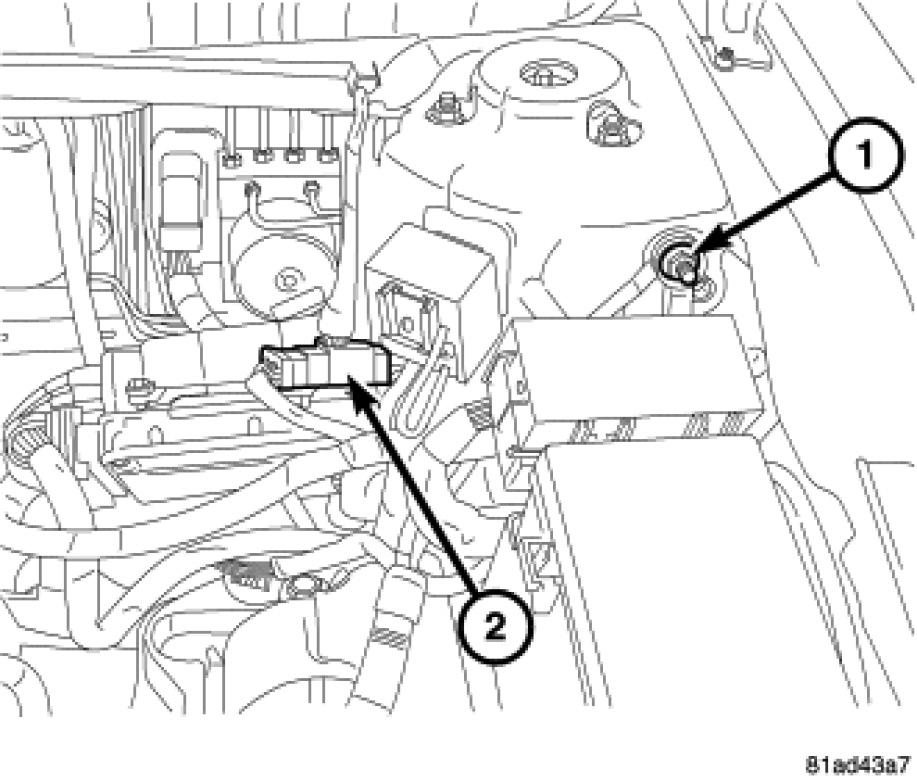

4. Disconnect negative battery cable (1).

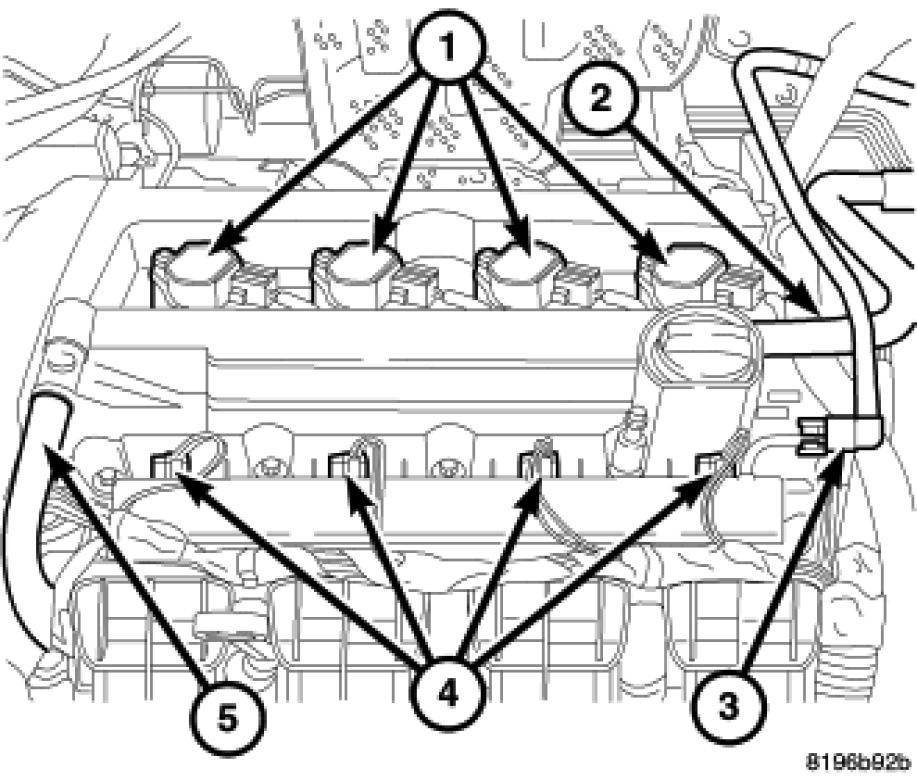

5. Disconnect fuel line at rail (3).
6. Remove fuel injector electrical connectors (4).
7. Remove fuel rail retaining bolts and remove fuel rail.

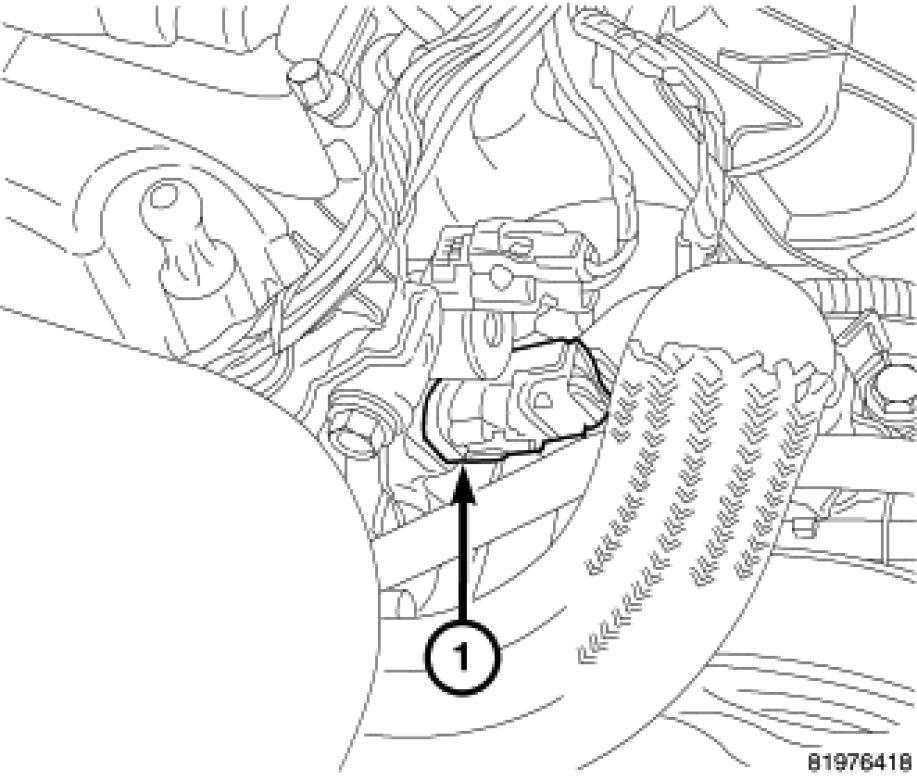

8. Disconnect oil temperature sensor (1).
9. Disconnect variable valve timing solenoid electrical connector.
10. Disconnect intake camshaft position sensor electrical connector.
11. Position harness out of the way.

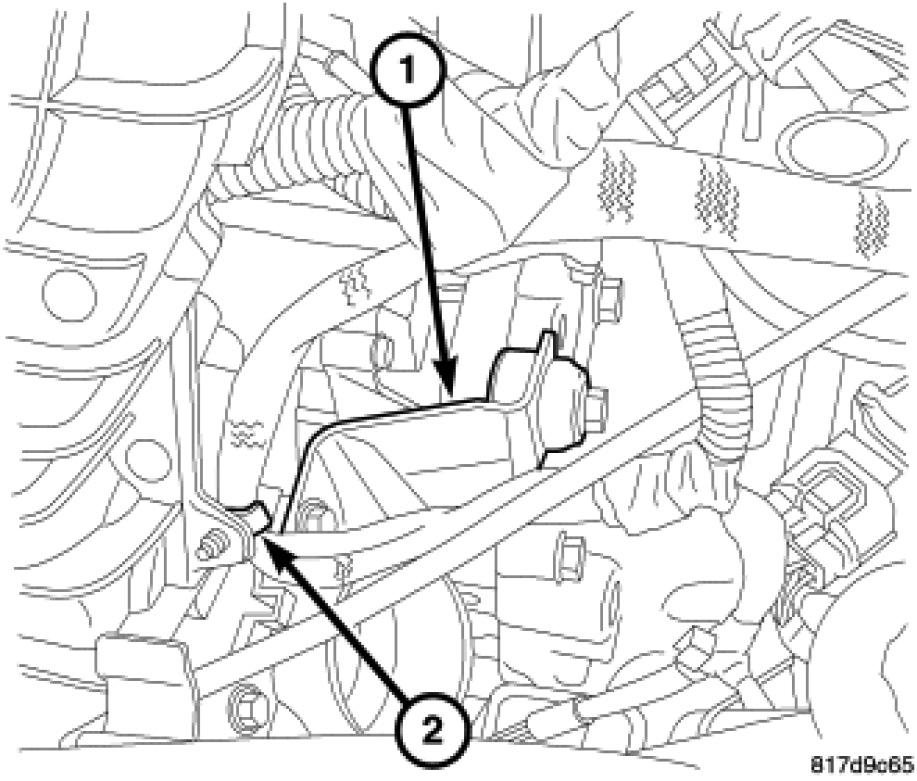

12. Remove throttle body support bracket (1).
13. Disconnect electronic throttle control electrical connector.
14. Remove wiring harness retainer from the intake manifold (2).
15. Disconnect MAP sensor electrical connector.
16. Disconnect vacuum lines at intake.




17. Remove intake manifold retaining bolts.
18. Remove intake manifold.
