Installation

FRONT SOLENOID 1/1

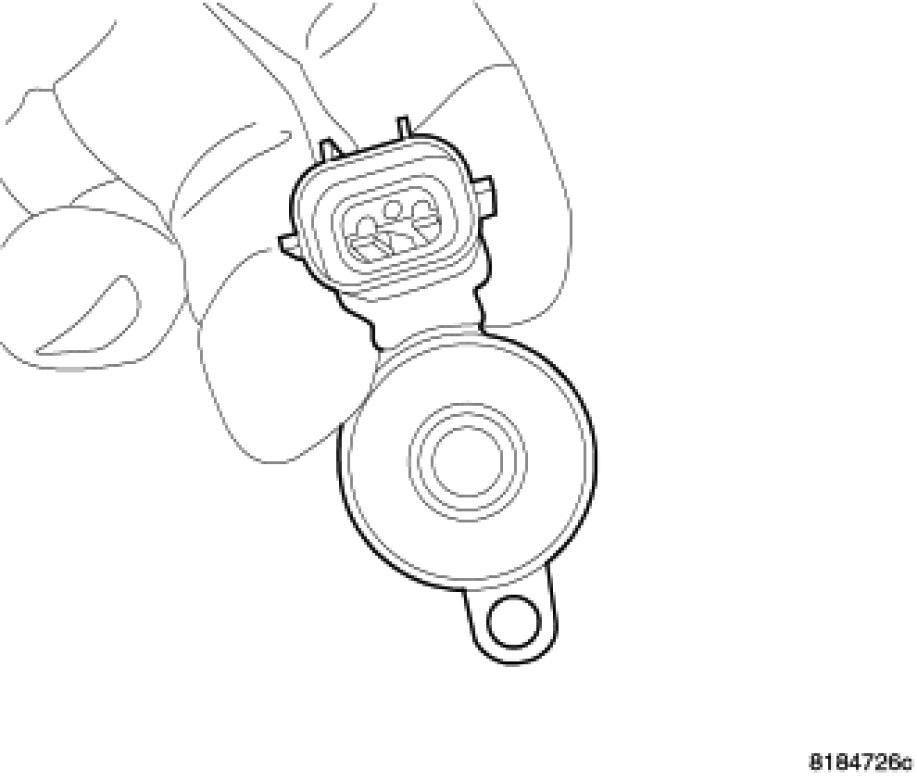

1. Solenoid for front location 1/1. Note mounting tab location is different between front and rear solenoids.

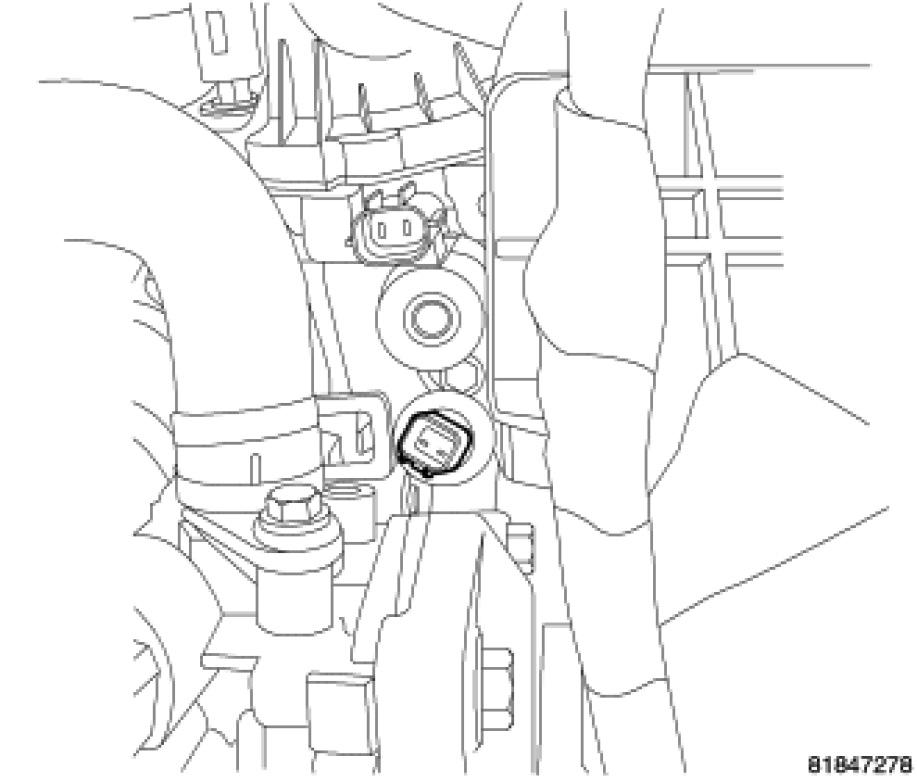

2. Install solenoid into cylinder head.
3. Install mounting bolt and tighten to 12 Nm (9 ft. lbs.).

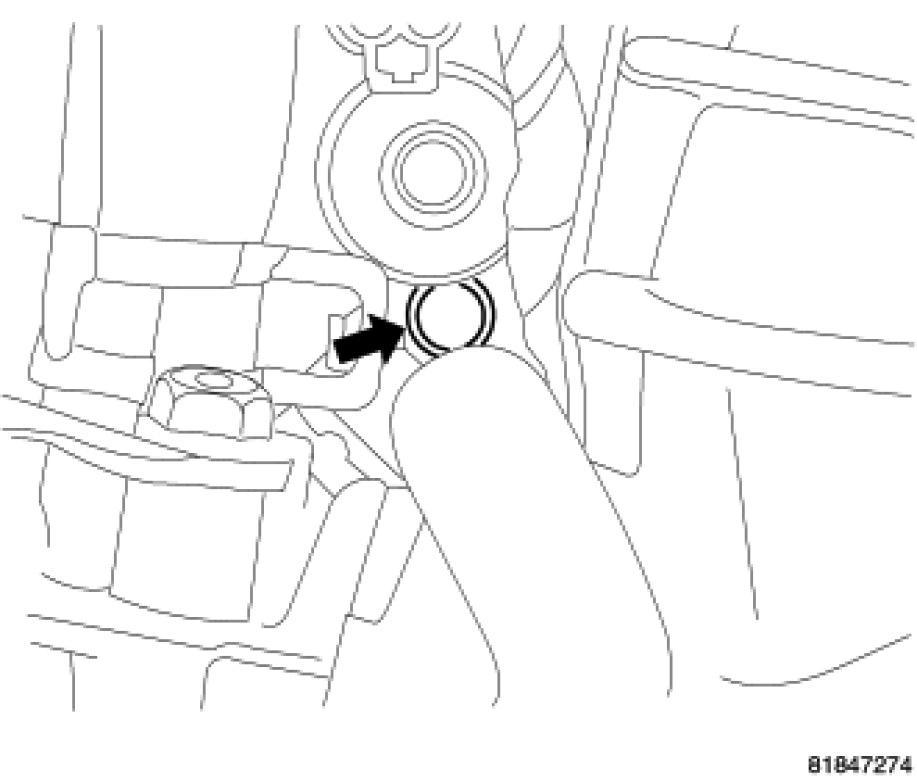

4. Install oil pressure sensor.
5. Connect electrical connector to oil pressure sensor.
6. Connect electrical connector to Variable valve timing solenoid.
7. Connect negative battery cable.
8. Install engine cover.
