Right Engine Mount

INSTALLATION

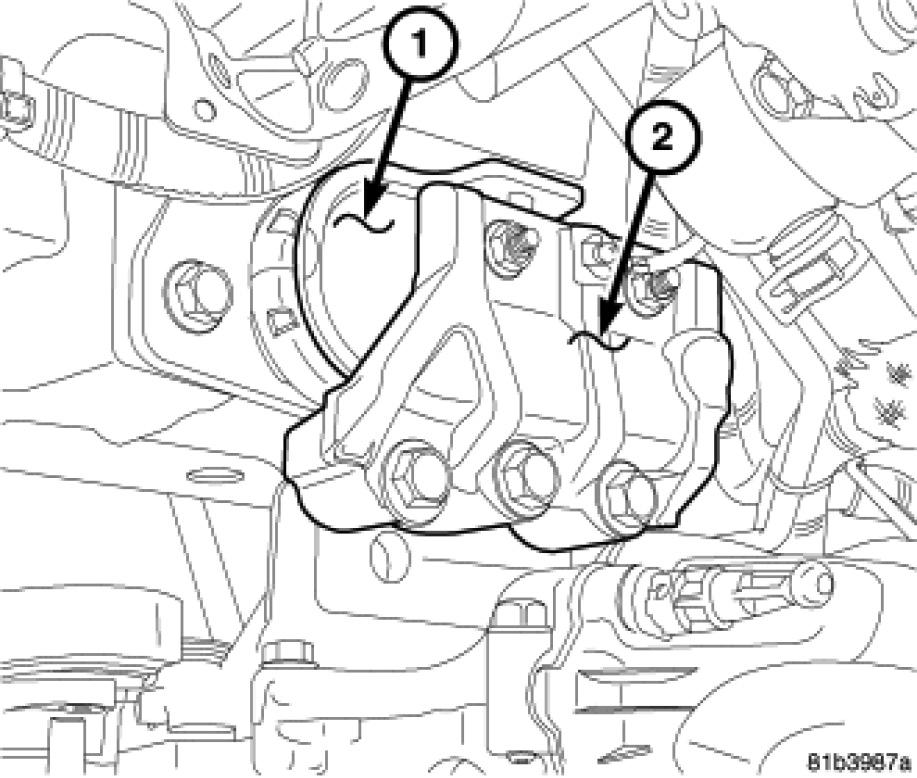

1. Position right engine mount isolator (1).
2. Install engine mount isolator retaining bolts and tighten to 75 Nm (55 ft. lbs.).

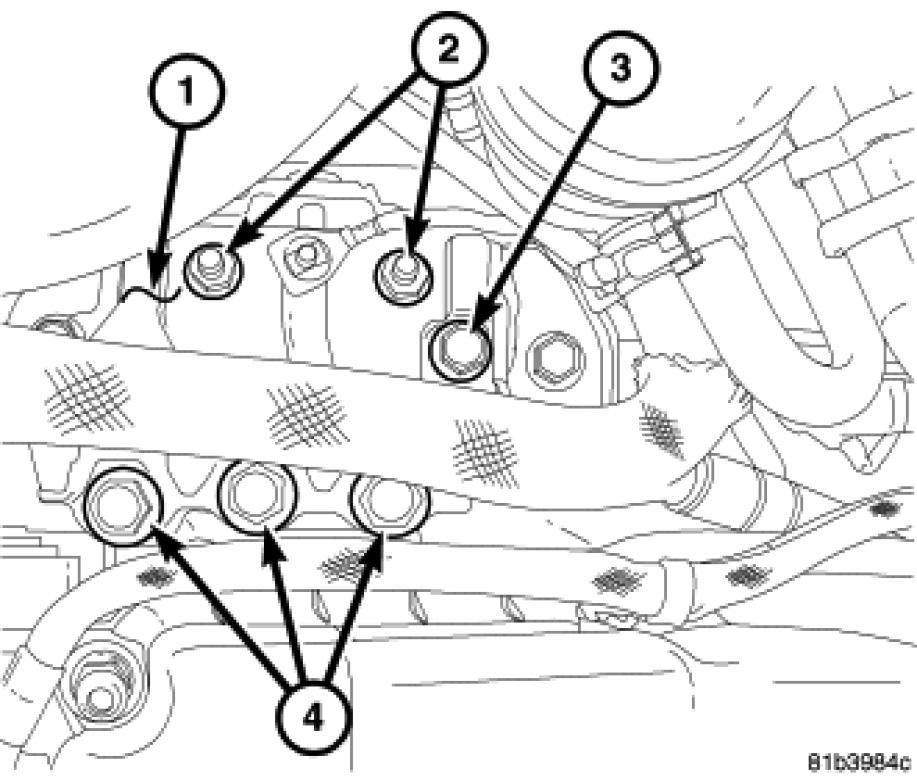

3. Install engine mount bracket (2) and tighten bolts (3) to 68 Nm (50 ft. lbs.).




4. Remove jack.
5. Install power steering line support (3) at engine mount.

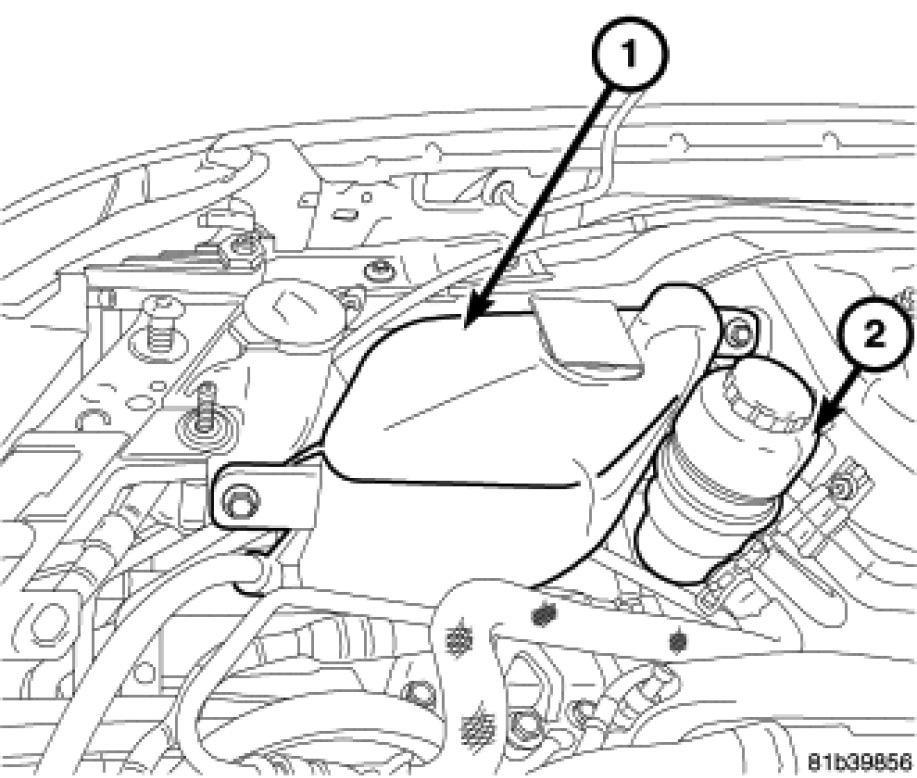

6. Install coolant reservoir (1).
