Accessory Drive Belt Tensioner - Removal

2.0/2.4L ENGINE





1. Raise vehicle on hoist.
2. Remove belt splash shield.
3. Remove accessory drive belt Accessory Drive Belt - Removal.

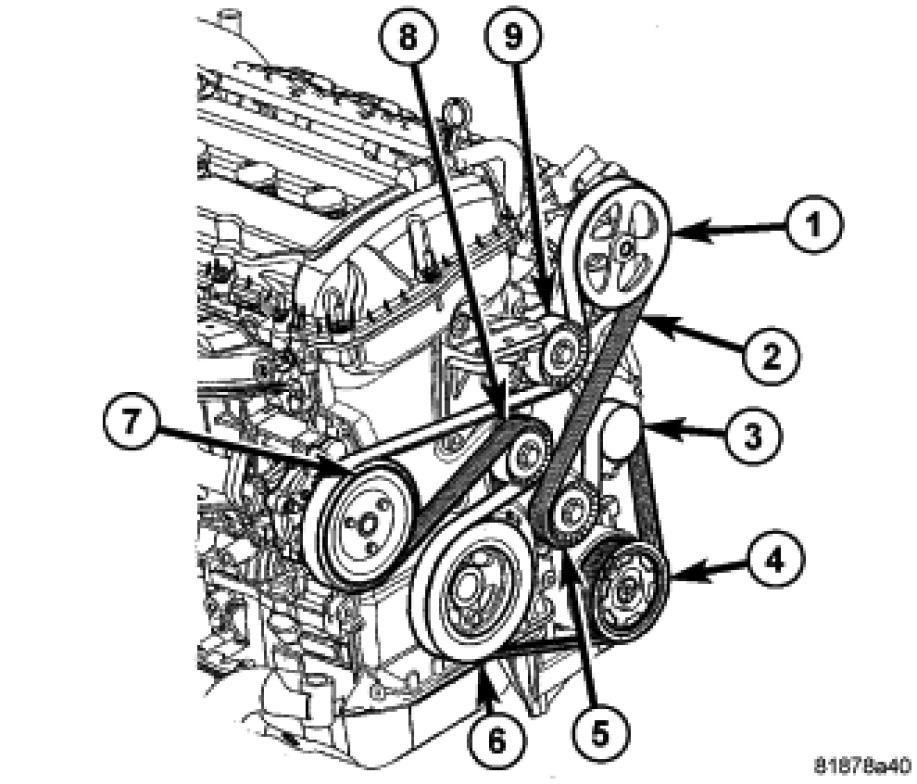

4. Remove accessory drive belt tensioner mounting bolt. Remove accessory drive belt tensioner (8).
