Vibration Damper - Removal







REMOVAL





1. Remove accessory drive belts Accessory Drive Belt - Removal.

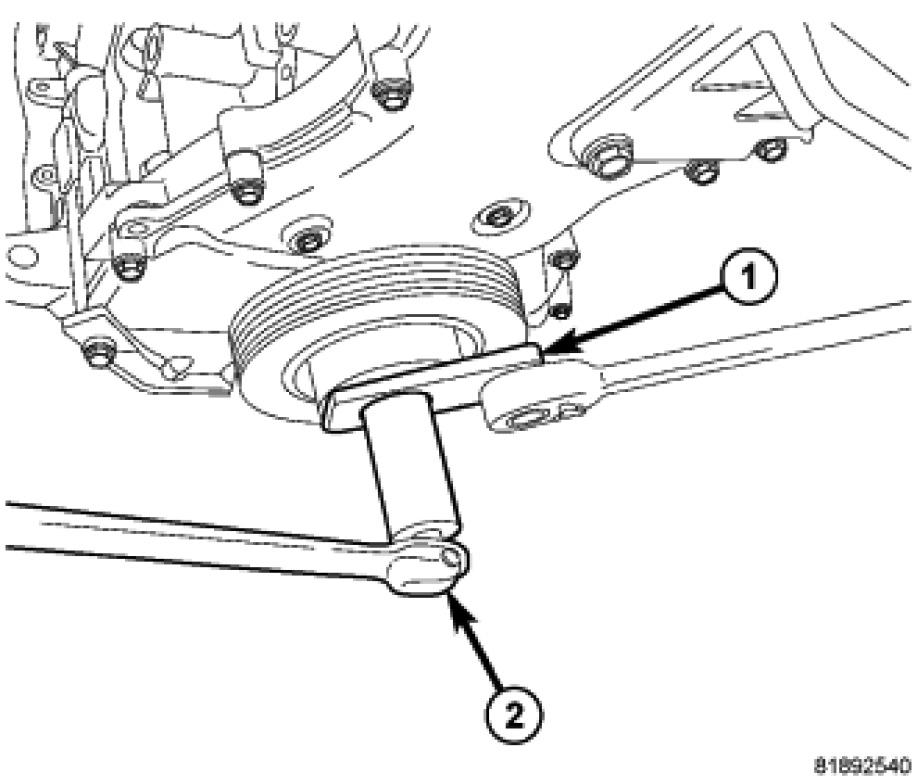

2. Install Damper holder 9707 (1).
3. Remove crankshaft damper bolt.
4. Pull damper off crankshaft.
