Valve Tappet(s) - Removal

REMOVAL





NOTE: This procedure is for in-vehicle service with camshafts installed.

NOTE: Camshaft tappets must be replaced if cylinder head or camshafts are replaced.

1. Remove cylinder head coverCylinder Head Cover - Removal.
2. Remove camshaftsCamshaft - Removal.

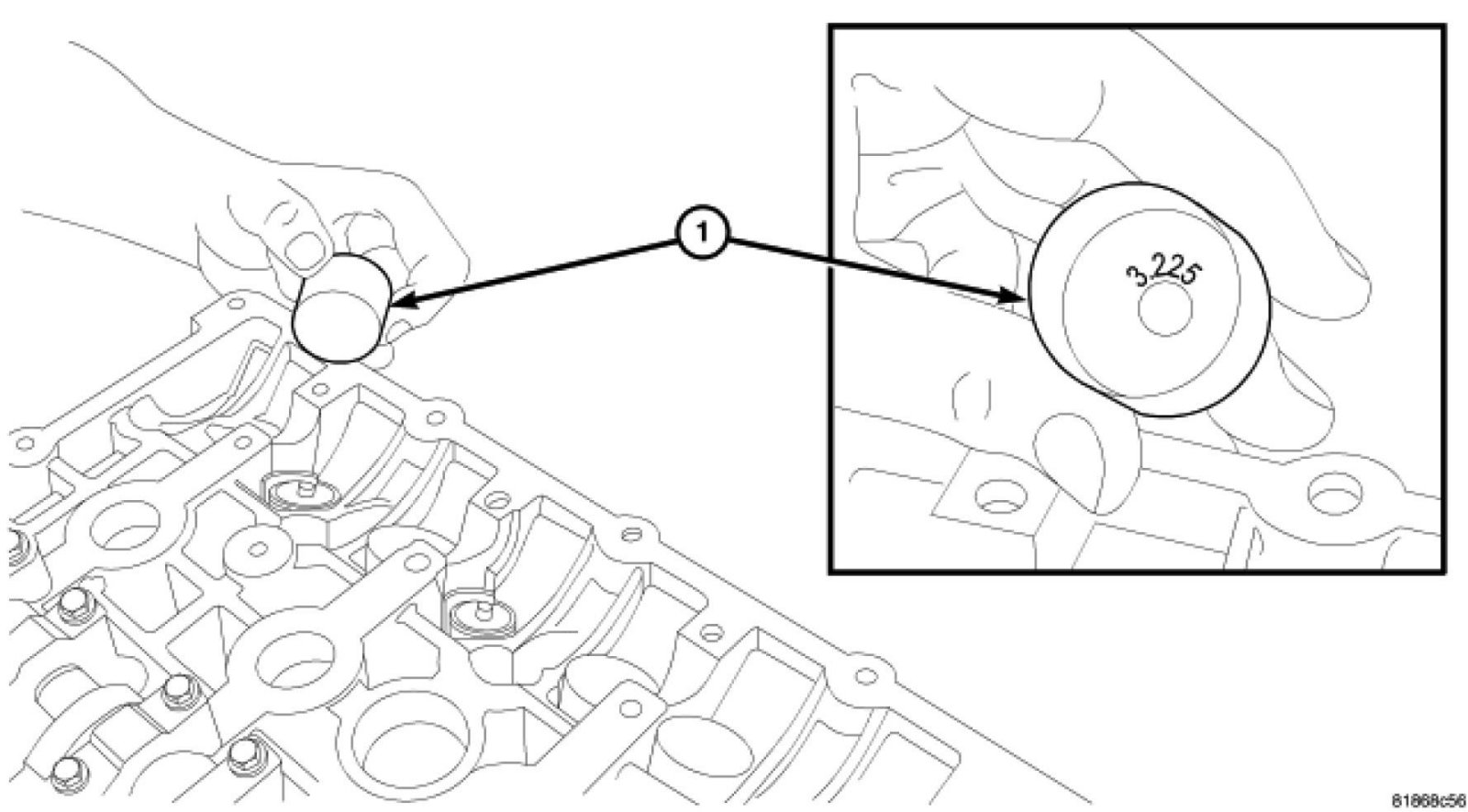

3. Remove camshaft tappets (1).
4. Repeat removal procedure for each camshaft tappet (1).
5. If reusing, mark each tappet for reassembly in original position.
