2.4L - Primary Thermostat

2.0/2.4L - PRIMARY THERMOSTAT





1. Partially drain cooling system Service and Repair.
2. Remove air filter housing.

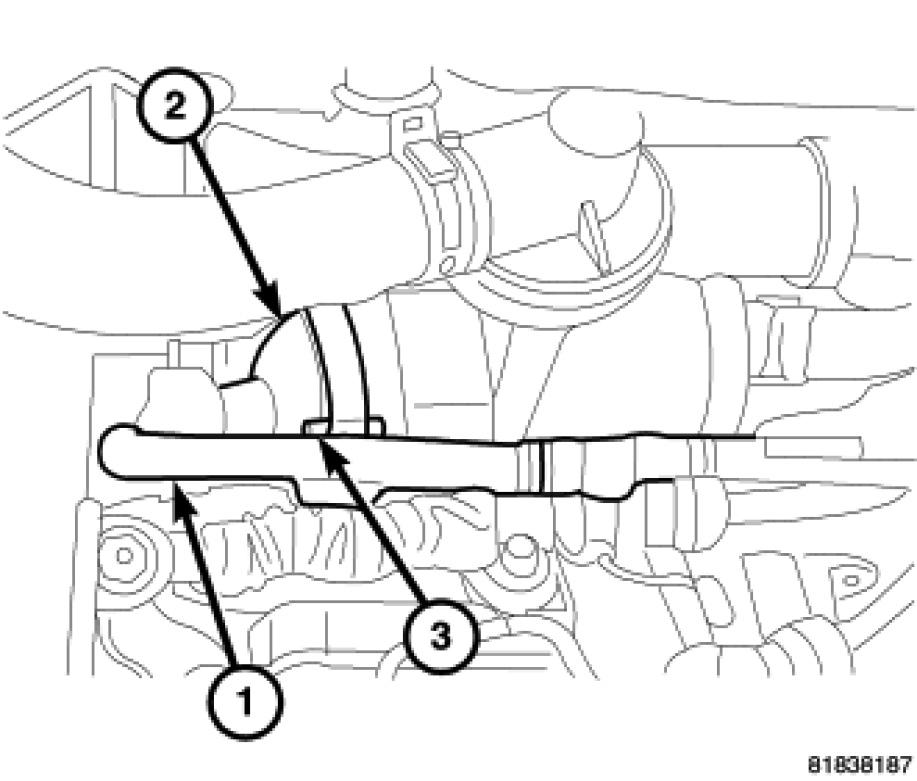

3. Disconnect coolant hose (1) from inlet housing (2).
4. Remove inlet housing bolts (3).
5. Remove thermostat assembly, and clean sealing surfaces.
