2.4L - Primary Thermostat

2.0/2.4L - PRIMARY THERMOSTAT

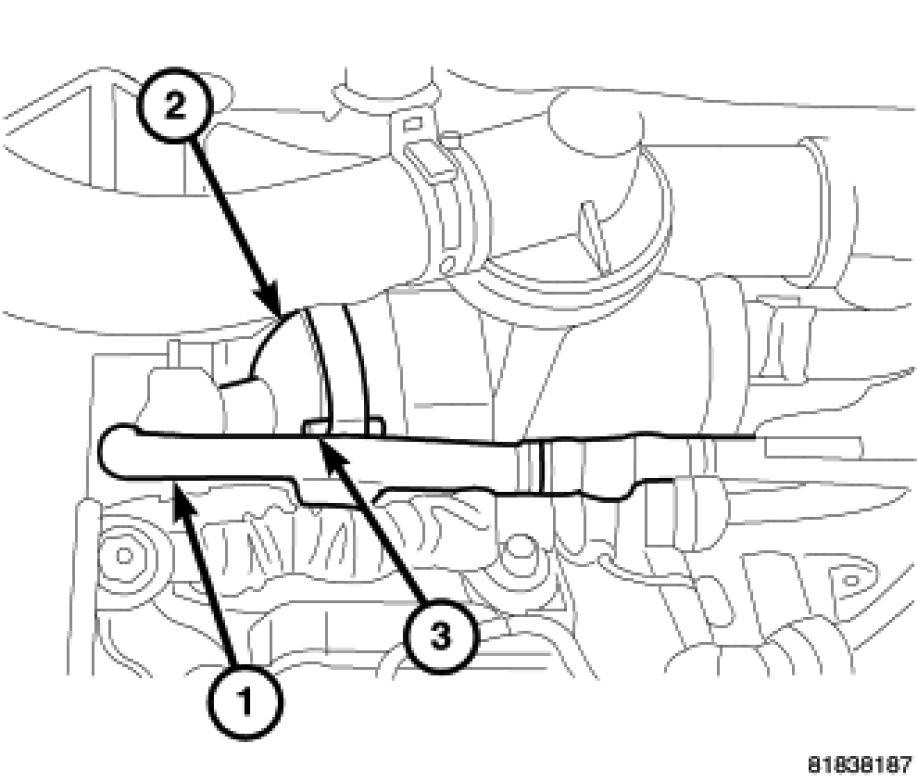

1. Position thermostat into the water plenum, aligning air bleed with the location notch on inlet housing (2).
2. Install inlet housing (2) onto coolant adapter. Tighten bolts to 9 Nm (79 in. lbs.).
3. Connect coolant hose (1).
4. Install air filter housing.
5. Fill cooling system Service and Repair.
