Non-Pressure System

NON-PRESSURE SYSTEM

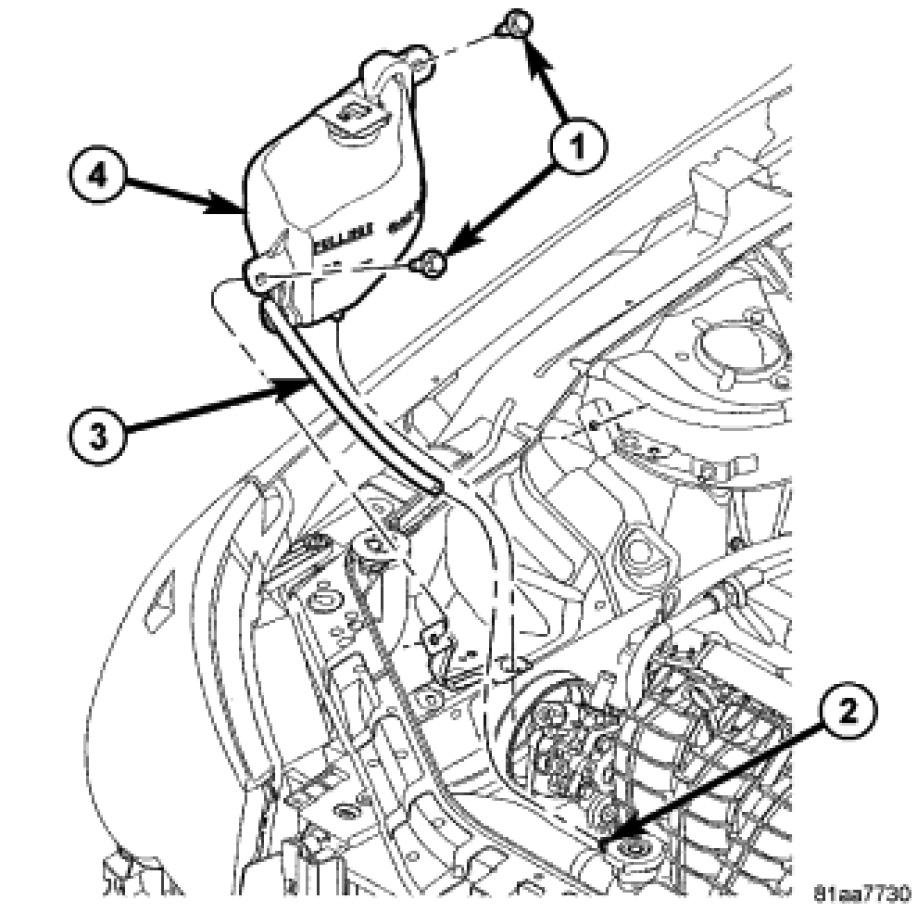

1. Disconnect the overflow hose (3) from radiator nipple (2).
2. Remove coolant recovery container mounting bolts (1).
3. Remove coolant recovery container (4).
