Group 8W-11 (Relay Block)

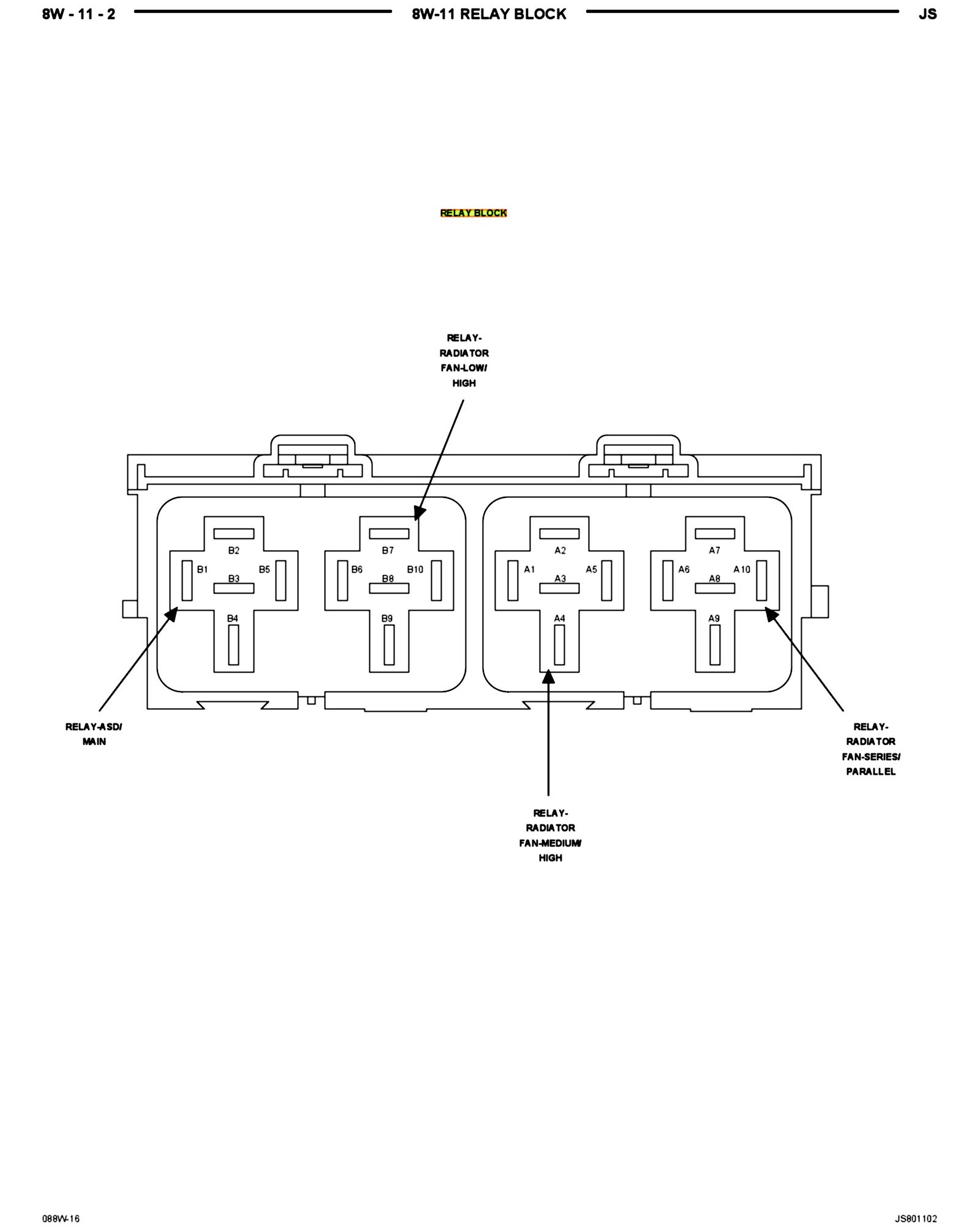

8w-11-02:



8w-11-03 (Diesel):



8w-11-06:



8w-11-07:



8w-11-08 (Diesel):
