Variable Induction Control Valve

Component ID: 482
Component : VALVE-MANIFOLD FLOW

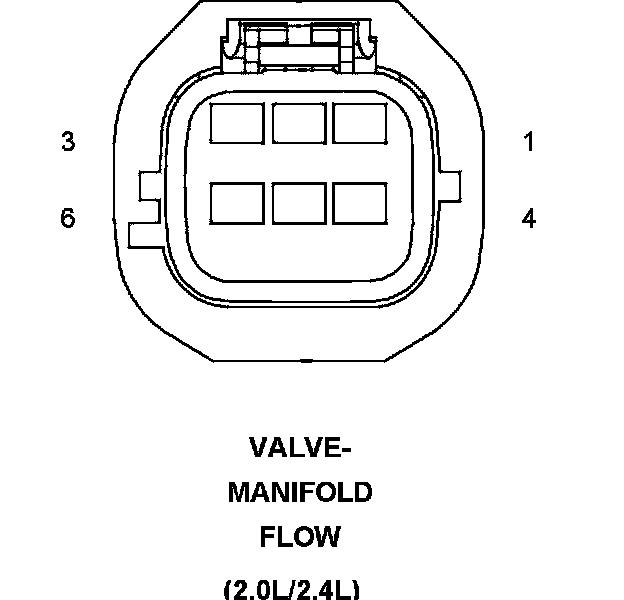

Connector:
Name : VALVE-MANIFOLD FLOW
Color :
# of pins : 6
Qualifier : (2.0L/2.4L)




Pin Circuit Description
1 Z902 20BK GROUND
2 - -
3 K601 20BR/VT MFV CONTROL
4 K900 20DB/LB SENSOR GROUND
5 K602 20YL/DB MFV SIGNAL
6 F856 20YL/PK 5 VOLT SUPPLY

Component Location - 29
