Motor-Window-Left Rear

Component ID: 238
Component : MOTOR-WINDOW-LEFT REAR

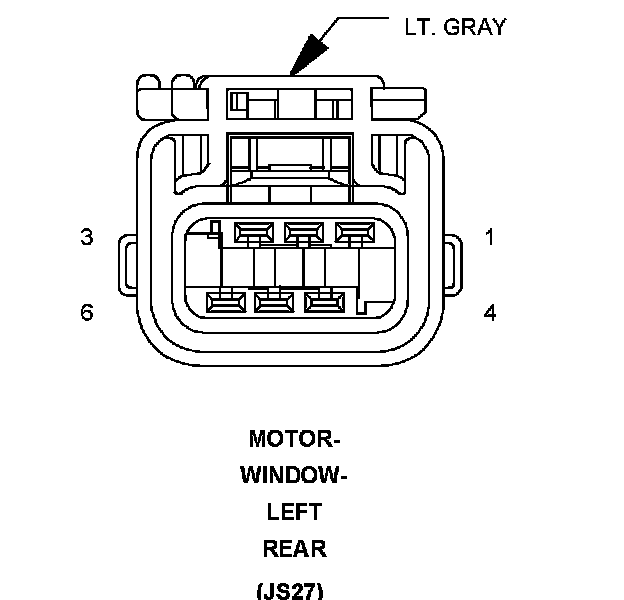

Connector:
Name : MOTOR-WINDOW-LEFT REAR
Color : LT. GRAY
# of pins : 6
Qualifier : (JS27)




Pin Circuit Description
1 Q992 20BK/GY REAR WINDOW MOTOR RETURN
2 Q309 20LB/OR LEFT REAR WINDOW HALL SENSOR B SIGNAL
3 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
4 Q315 20OR LEFT REAR WINDOW HALL SENSOR SUPPLY
5 Q307 20OR/LB LEFT REAR WINDOW HALL SENSOR A SIGNAL
6 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)

Component Location - 73




Component Location - 76






Connector:
Name : MOTOR-WINDOW-LEFT REAR
Color : BLACK
# of pins : 2
Qualifier : (JS41)




Pin Circuit Description
1 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
2 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)

Component Location - 73




Component Location - 76
