Power Seat Switch

Component ID: 470
Component : SWITCH-SEAT-DRIVER

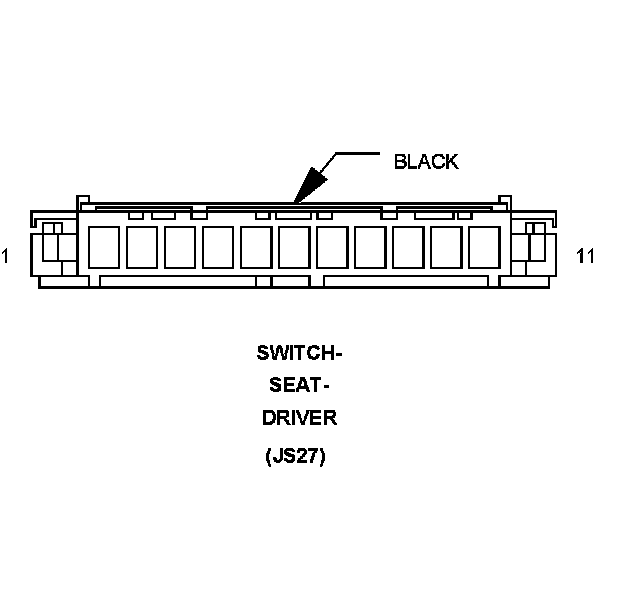

Connector:
Name : SWITCH-SEAT-DRIVER
Color : BLACK
# of pins : 11
Qualifier : (JS27)




Pin Circuit Description
1 - -
2 - -
3 - -
4 P17 16LG/DG DRIVER SEAT HORIZONTAL REARWARD DRIVER
5 P21 16LG/TN DRIVER SEAT FRONT DOWN DRIVER
6 A929 12RD FUSED B(+)
7 Z914 12BK GROUND
8 P15 16LG/WT DRIVER SEAT HORIZONTAL FORWARD DRIVER
9 P19 16LG/LB DRIVER SEAT FRONT UP DRIVER
10 P13 16LG/OR DRIVER SEAT REAR RISER DOWN DRIVER
11 P11 16LG/YL DRIVER SEAT REAR RISER UP DRIVER

Component Location - 66

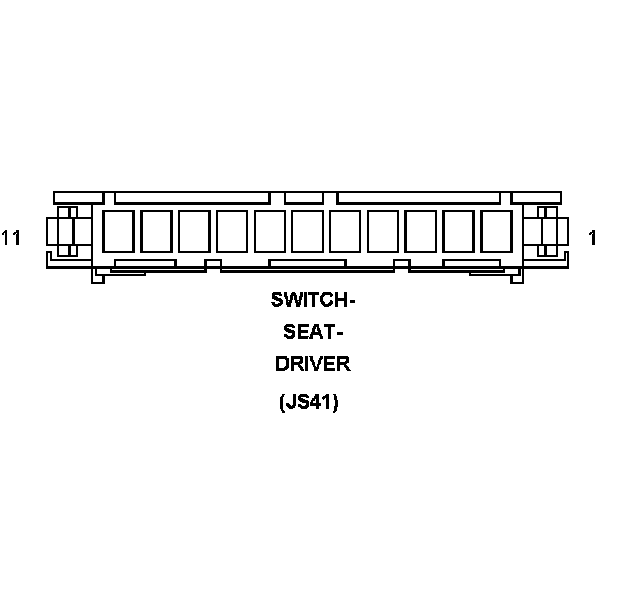

Connector:
Name : SWITCH-SEAT-DRIVER
Color :
# of pins : 11
Qualifier : (JS41)




Pin Circuit Description
1 P41 16LG/GY DRIVER SEAT RECLINER DOWN DRIVER
2 - -
3 P43 16LG/VT DRIVER SEAT RECLINER UP DRIVER
4 P17 16LG/DG DRIVER SEAT HORIZONTAL REARWARD DRIVER
5 P21 16LG/TN DRIVER SEAT FRONT DOWN DRIVER
6 A929 12RD FUSED B(+)
7 Z914 12BK GROUND
8 P15 16LG/WT DRIVER SEAT HORIZONTAL FORWARD DRIVER
9 P19 16LG/LB DRIVER SEAT FRONT UP DRIVER
10 P13 16LG/OR DRIVER SEAT REAR RISER DOWN DRIVER
11 P11 16LG/YL DRIVER SEAT REAR RISER UP DRIVER

Component Location - 66
