Latch-Door-Decklid

Component ID: 196
Component : LATCH-DOOR-DECKLID

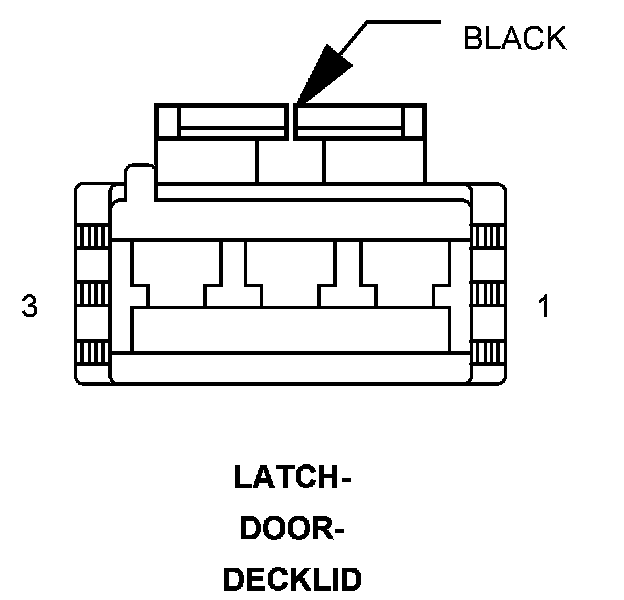

Connector:
Name : LATCH-DOOR-DECKLID
Color : BLACK
# of pins : 3




Pin Circuit Description
1 Z916 20BK GROUND
Pin Circuit Description
1 Z916 18BK GROUND
2 G78 22VT/OR DECKLID AJAR SWITCH SENSE
2 G78 20VT/OR DECKLID AJAR SWITCH SENSE
3 P31 20TN/YL DECKLID RELEASE DRIVER

Component Location - 90




Component Location - 91




Component Location - 92
