Oil Temperature Sensor/Switch, Engine

Component ID: 407
Component : SENSOR-OIL TEMPERATURE

Connector:
Name : SENSOR-OIL TEMPERATURE
Color :
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Circuit Description
1 G24 20VT/BR EOT SIGNAL
2 K915 20BR/PK SENSOR GROUND

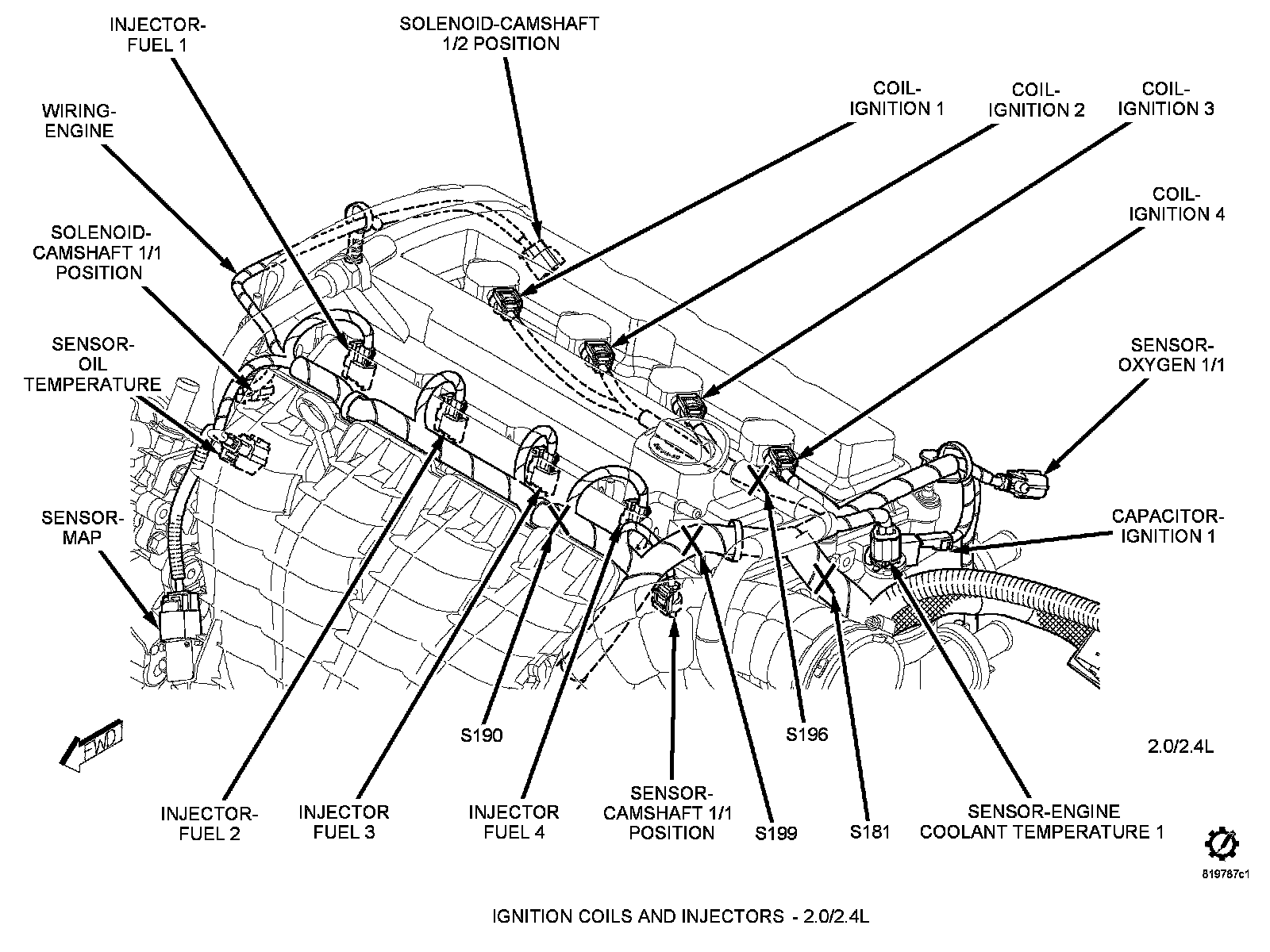

Component Location - 30
