Horn Switch

Component ID: 450

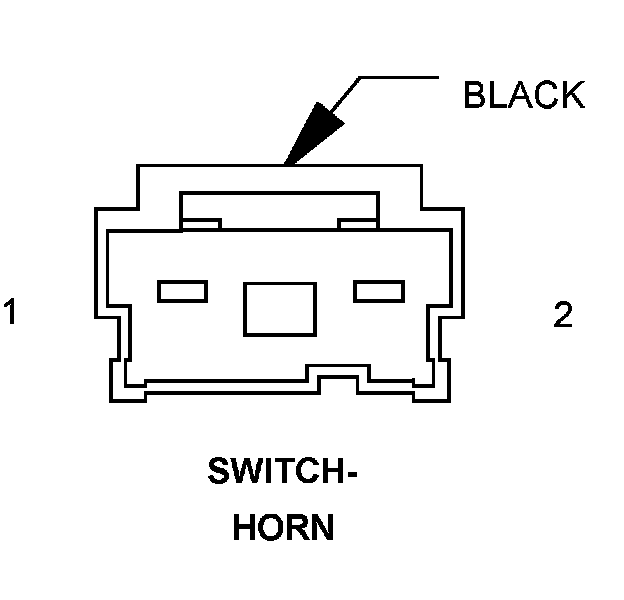

Component : SWITCH-HORN

Connector:
Name : SWITCH-HORN
Color : BLACK
# of pins : 2




Pin Circuit Description
1 X3 20DB HORN SWITCH SENSE
2 Y13 20BK RADIO CONTROL RETURN

Component Location - 45
