Courtesy Lamp

Component ID: 158

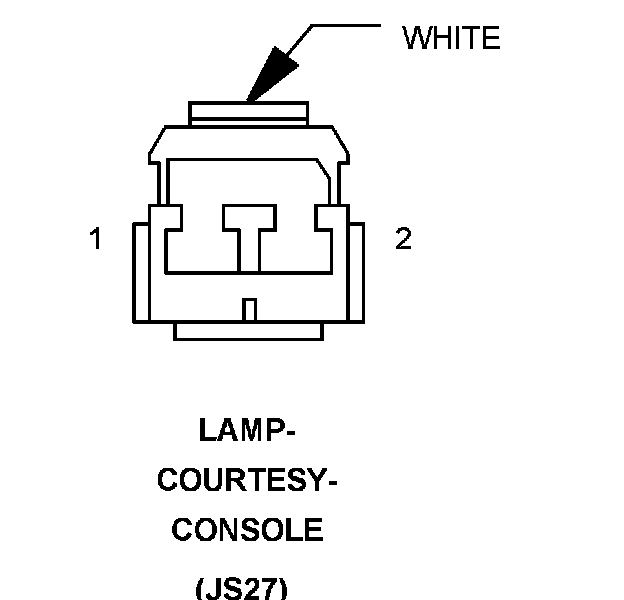

Component : LAMP-COURTESY-CONSOLE

Connector:
Name : LAMP-COURTESY-CONSOLE
Color : WHITE
# of pins : 2
Qualifier : (JS27)




Pin Circuit Description
1 M24 20YL/WT COURTESY LAMPS DRIVER
2 Z907 20BK GROUND

Component Location - 57
