C315

Component ID: 66
Component : C315

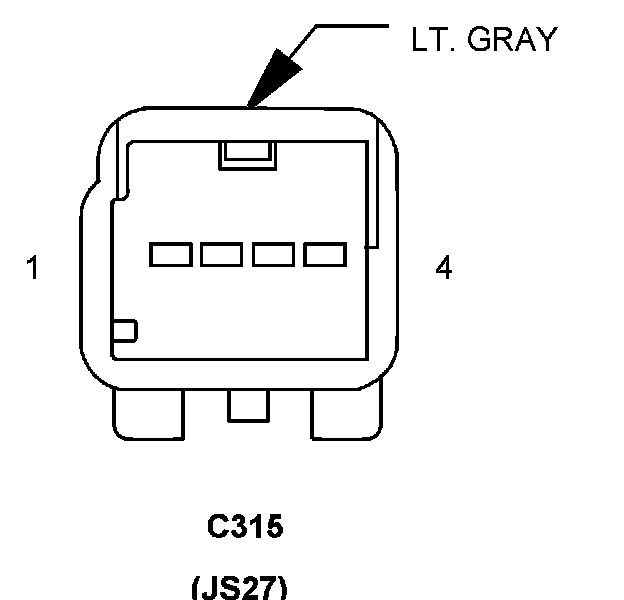

Connector:
Name : C315
Color : LT. GRAY
# of pins : 4
Qualifier : (JS27)
Gender : FEMALE




Pin Circuit Description
1 C830 20DB/YL IR SENSOR RETURN
2 C83 20DB/LG IR SENSOR SIGNAL
3 - -
4 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)

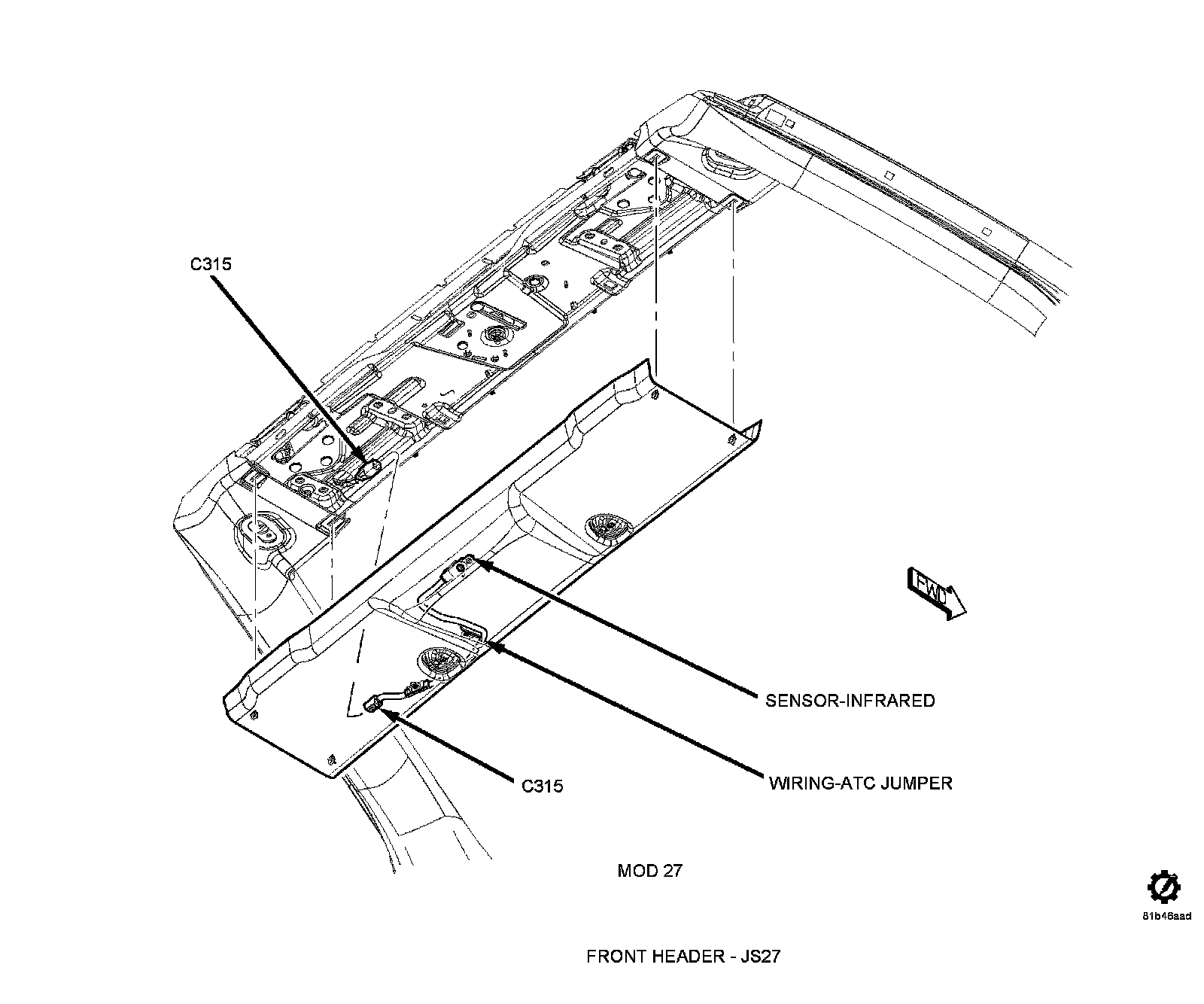

Component Location - 50




Component Location - 51

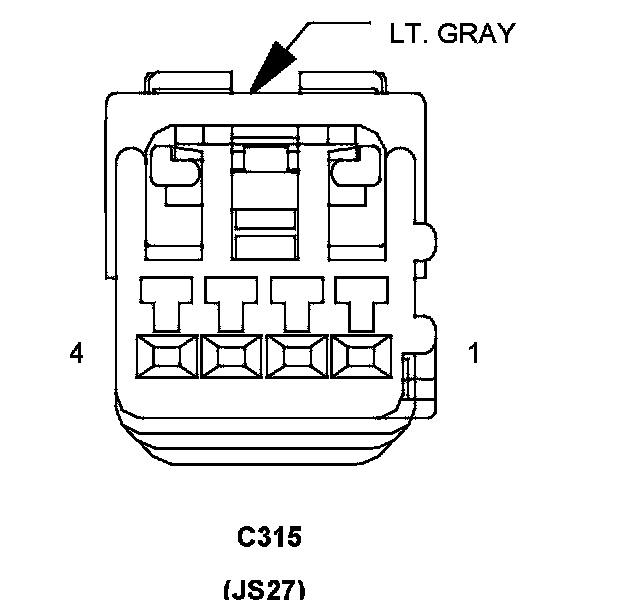

Connector:
Name : C315
Color : LT. GRAY
# of pins : 4
Qualifier : (JS27)
Gender : MALE




Pin Circuit Description
1 C830 20DB/YL IR SENSOR RETURN
2 C83 20DB/LG IR SENSOR SIGNAL
3 - -
4 F202 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)

Component Location - 50




Component Location - 51
