C309

Component ID: 61
Component : C309

Connector:

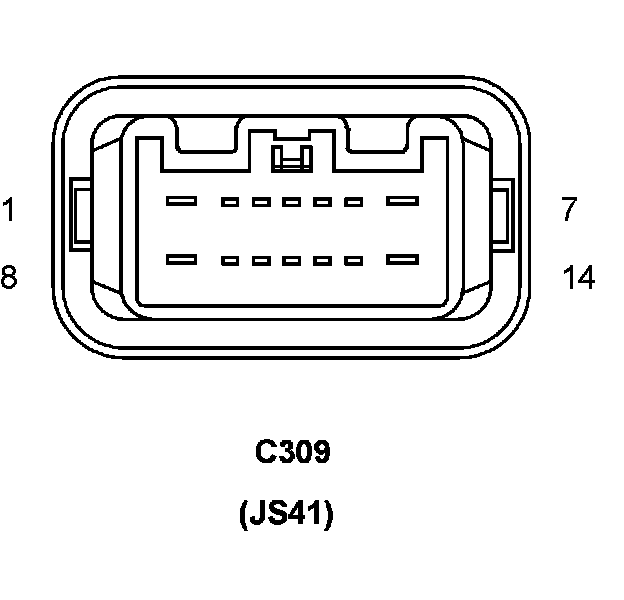

Name : C309
Color :
# of pins : 14
Qualifier : (JS41)
Gender : FEMALE




Pin Circuit Description
1 Q15 14OR/PK WINDOW LOCK OUT SWITCH OUTPUT
2 - -
3 P33 20TN/DB DOOR LOCK DRIVER
4 P235 20LG/TN SECONDARY LOCK DRIVER
5 G76 22VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
6 - -
7 Q412 14OR/LG MASTER WINDOW SWITCH RIGHT REAR (UP)
8 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
9 - -
10 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
11 P237 20DG/TN SECONDARY UNLOCK DRIVER
12 Z915 20BK GROUND
13 - -
14 - -

Component Location - 63




Component Location - 73






Connector:

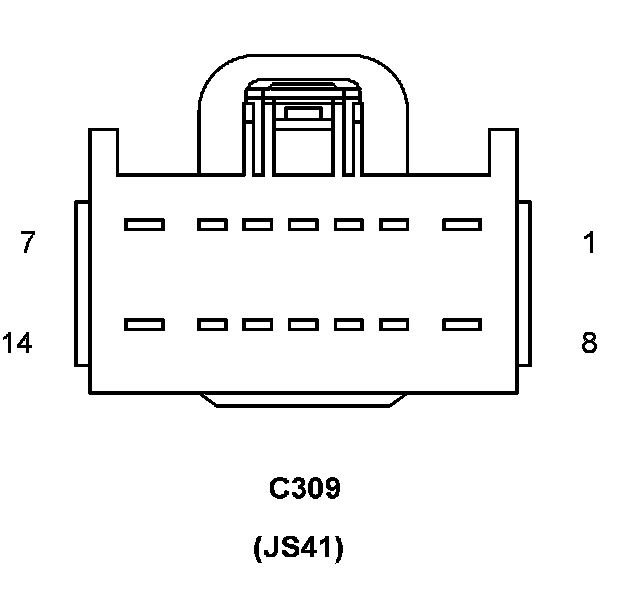

Name : C309
Color :
# of pins : 14
Qualifier : (JS41)
Gender : MALE




Pin Circuit Description
1 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
2 - -
3 P33 20TN/DB DOOR LOCK DRIVER
4 P235 20LG/TN SECONDARY LOCK DRIVER
5 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
6 - -
7 Q412 14OR/WT MASTER WINDOW SWITCH RIGHT REAR (UP)
8 Q612 14OR/GY MASTER WINDOW SWITCH RIGHT REAR (DOWN)
9 - -
10 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
11 P237 20DG/TN SECONDARY UNLOCK DRIVER
12 Z915 20BK GROUND
13 - -
14 - -

Component Location - 63




Component Location - 73
