C300

Component ID: 53

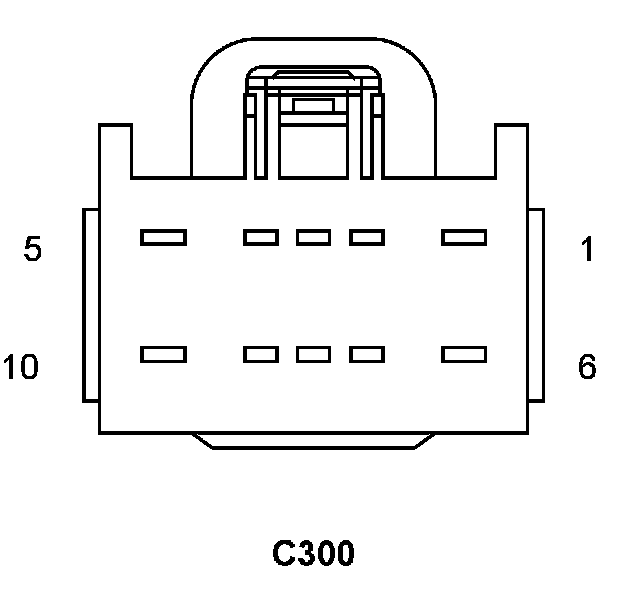

Component : C300

Connector:
Name : C300
Color :
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 A950 18RD/VT FUSED B(+)
2 - -
3 M24 20YL/WT COURTESY LAMPS DRIVER
3 D54 20WT CAN B BUS (-)
4 A415 18RD/LB FUSED B(+) (I.O.D.)
5 Z907 14BK GROUND
6 F929 20PK/DB FUSED IGNITION SWITCH OUTPUT (RUN)
7 D122 22WT/LG LIN BUS
8 Z907 18BK GROUND
8 D55 20WT/OR CAN B BUS (+)
9 E12 20OR/GY PANEL LAMPS DRIVER
9 E12 20OR/GY PANEL LAMPS DRIVER
10 A419 18RD/PK FUSED B(+) (I.O.D.)

Component Location - 55




Component Location - 56




Component Location - 57

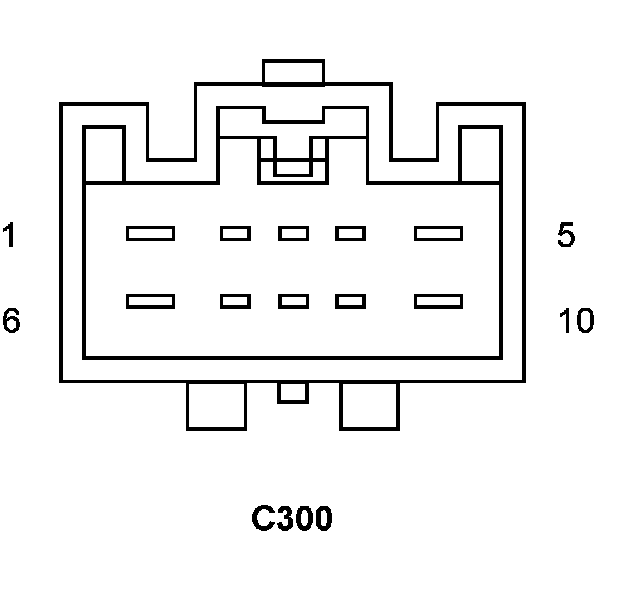

Connector:
Name : C300
Color :
# of pins : 10
Gender : MALE




Pin Circuit Description
1 A950 18RD/VT FUSED B(+)
Pin Circuit Description
1 A950 20RD/VT FUSED B(+)
2 - -
3 D54 20WT CAN B BUS (-)
3 M24 20YL/WT COURTESY LAMPS DRIVER
4 A415 22RD/LB FUSED B(+) (I.O.D.)
4 A415 22RD/LB FUSED B(+) (I.O.D.)
5 Z907 14BK GROUND
5 Z907 16BK GROUND
5 Z907 20BK GROUND
6 F929 20PK/DB FUSED IGNITION SWITCH OUTPUT (RUN)
7 D122 22WT/LG LIN BUS
8 D55 20WT/OR CAN B BUS (+)
8 Z907 22BK GROUND
8 Z907 22BK GROUND
9 E12 20OR/GY PANEL LAMPS DRIVER
10 A419 18RD/PK FUSED B(+) (I.O.D.)

Component Location - 55




Component Location - 56




Component Location - 57
