C205

Component ID: 50
Component : C205

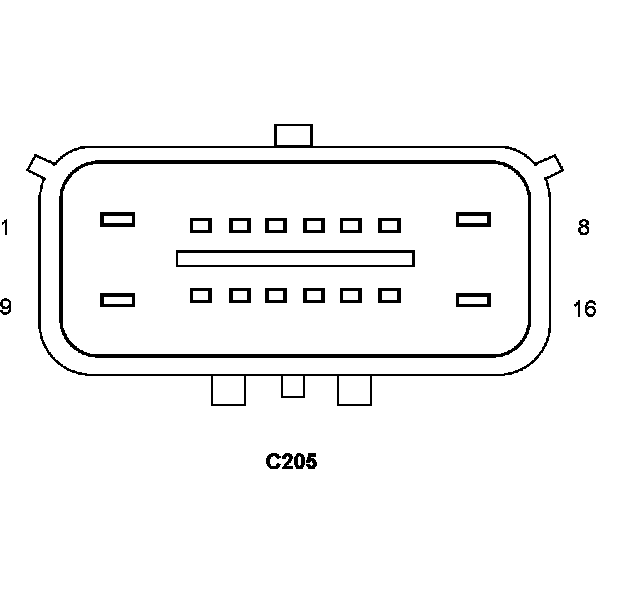

Connector:
Name : C205
Color :
# of pins : 16
Gender : FEMALE

Pin Circuit Description
1 D55 20WT/OR CAN B BUS (+)
2 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
3 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
4 R43 18LG/BR DRIVER SQUIB 1 LINE 2
5 R45 18LG/OR DRIVER SQUIB 1 LINE 1
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
8 - -
9 D54 20WT CAN B BUS (-)
10 R61 18LG/VT DRIVER SQUIB 2 LINE 2
11 R63 18LG/WT DRIVER SQUIB 2 LINE 1
12 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
13 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
14 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
15 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
16 - -

Component Location - 56

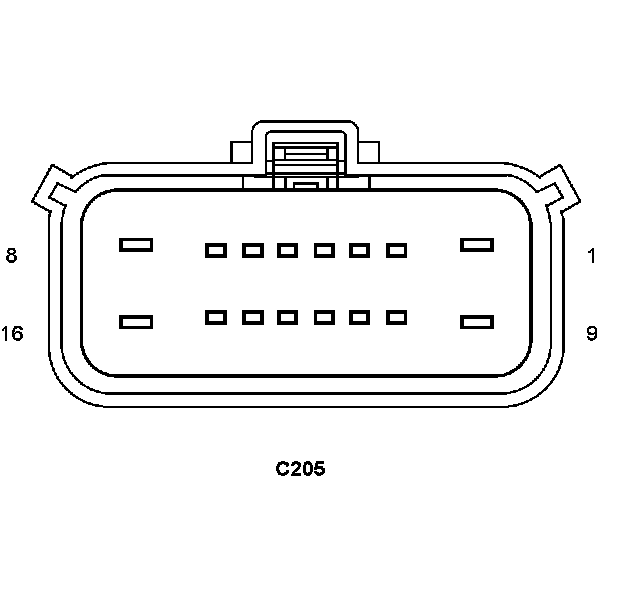

Connector:
Name : C205
Color :
# of pins : 16
Gender : MALE
