C114
Component ID: 39

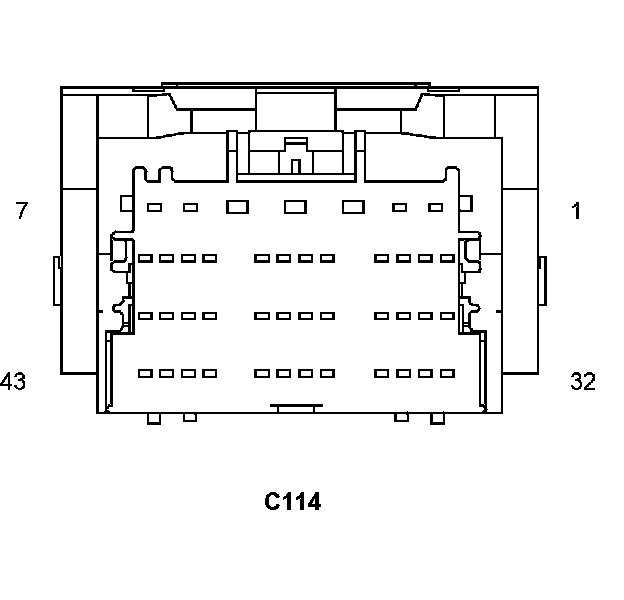

Component : C114
Connector:
Name : C114
Color :
# of pins : 43
Gender : FEMALE
Pin Circuit Description
1 A419 18RD/PK FUSED B(+) (I.O.D.)
2 - -
3 F202 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 C7 12DB BLOWER MOTOR CONTROL
5 - -
6 - -
7 A420 18RD FUSED B(+) (I.O.D.)
8 A412 22RD/GY FUSED B(+) (I.O.D.)
9 F20 20PK IGNITION SWITCH OUTPUT (RUN-START)
10 A411 20RD FUSED B(+) (I.O.D.)
11 L53 20DG/WT STOP LAMP SWITCH OUTPUT
12 D54 20WT CAN B BUS (-)
13 D55 20WT/OR CAN B BUS (+)
14 - -
15 - -
16 - -
17 A417 20RD/DB FUSED B(+) (I.O.D.)
18 F929 20PK/DB FUSED IGNITION SWITCH OUTPUT (RUN)
19 - -
20 A932 18RD/WT DOOR LOCK POWER-FUSED B(+)
21 A933 22RD/VT FUSED B(+)
22 - -
23 A415 20RD/LB FUSED B(+) (I.O.D.)
24 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
25 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
26 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
27 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
28 D96 20WT/LB SIREN SIGNAL CONTROL
29 - -
30 A935 20RD FUSED B(+)
31 A952 20RD/TN FUSED B(+)
32 F986 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
33 V71 20VT/OR S/C SIGNAL 1
34 V72 20OR/VT S/C SIGNAL 2
35 V937 20VT/BR S/C SWITCH GROUND
36 D21 20WT/BR SCI TRANSMIT
37 D71 20WT/DB DIAGNOSTIC CAN C (-)
38 D72 20WT/LB DIAGNOSTIC CAN C (+)
39 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
40 - -
41 - -
42 D24 20WT/DG FLASH ABS
43 A413 20RD/BR FUSED B(+) (I.O.D.)
Component Location - 36
Component Location - 46
Component Location - 58
Component Location - 39
Component Location - 41
Component Location - 37
Connector:
Name : C114
Color :
# of pins : 43
Gender : MALE
Pin Circuit Description
1 A419 18RD/PK FUSED B(+) (I.O.D.)
2 - -
3 F202 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 C7 12DB BLOWER MOTOR CONTROL
5 - -
6 - -
7 A420 18RD FUSED B(+) (I.O.D.)
8 A412 22RD/GY FUSED B(+) (I.O.D.)
9 F20 20PK IGNITION SWITCH OUTPUT (RUN-START)
10 A411 20RD FUSED B(+) (I.O.D.)
11 L53 22DG/WT STOP LAMP SWITCH OUTPUT
12 D54 20WT CAN B BUS (-)
13 D55 20WT/OR CAN B BUS (+)
14 - -
15 - -
16 - -
17 A417 20RD/DB FUSED B(+) (I.O.D.)
18 F929 20PK/DB FUSED IGNITION SWITCH OUTPUT (RUN)
19 - -
20 A932 18RD/WT DOOR LOCK POWER-FUSED B(+)
21 A933 20RD/VT FUSED B(+)
22 - -
23 A415 22RD/LB FUSED B(+) (I.O.D.)
24 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
25 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
26 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
27 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
28 D96 20WT/LB SIREN SIGNAL CONTROL
29 - -
30 A935 20RD FUSED B(+)
31 A952 20RD/TN FUSED B(+)
32 F986 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
33 V71 20VT/OR S/C SIGNAL 1
34 V72 20OR/VT S/C SIGNAL 2
35 V937 20VT/BR S/C SWITCH GROUND
36 D21 20WT/BR SCI TRANSMIT
37 D71 20WT/DB DIAGNOSTIC CAN C (-)
38 D72 20WT/LB DIAGNOSTIC CAN C (+)
39 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
40 - -
41 - -
42 D24 20WT/DG FLASH ABS
43 A413 20RD/BR FUSED B(+) (I.O.D.)
Component Location - 36
Component Location - 46
Component Location - 58
Component Location - 39
Component Location - 41
Component Location - 37
