Installation

INSTALLATION





NOTE: The proportioning valves are not identical and cannot be interchanged. The proportioning valve that threads into the primary port has 7/16 in.-24 threads in its outlet port. The proportioning valve that threads into the secondary port has 3/8 in.-24 threads in its outlet port.

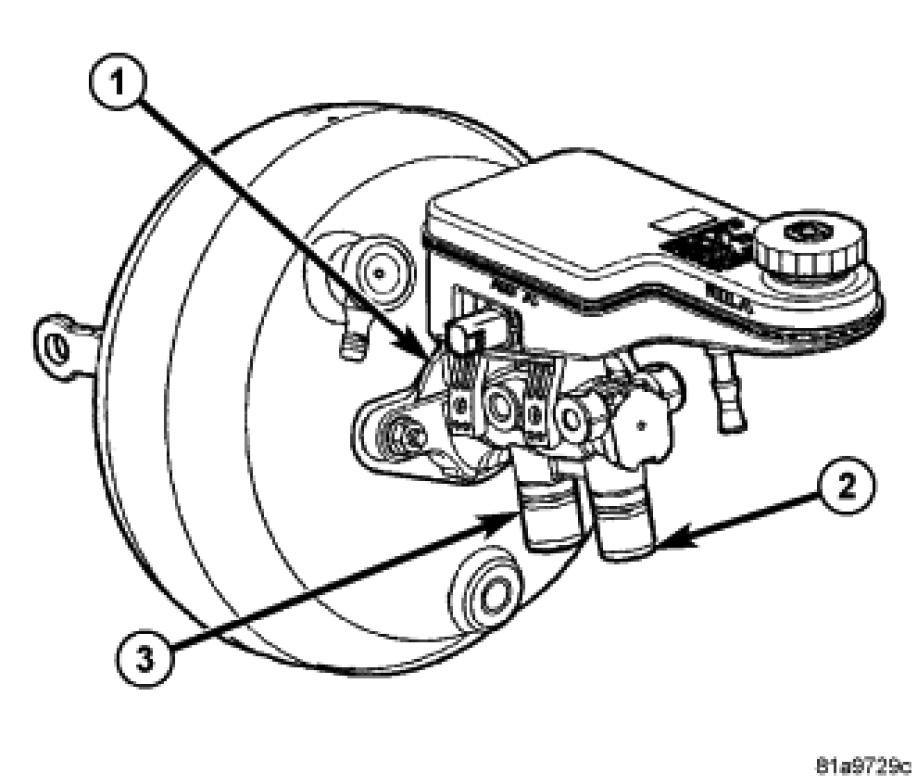

1. Install the proportioning valve (2 or 3) in its master cylinder (1) port. Tighten the proportioning valve to 30 Nm (22 ft. lbs.).




2. Install the brake tube (1 or 2) to the proportioning valve. Tighten the tube nut to 17 Nm (150 in. lbs.).




3. Remove the brake pedal holder.
4. Bleed the affected brake line(s). Brake Bleeding
5. Road test the vehicle to ensure proper operation of the brakes.
