REMOVAL
1.

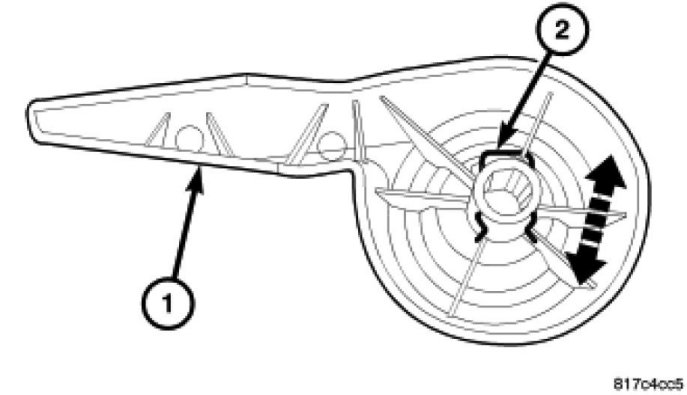

Using special tool C-4829a, pry up on recliner handle.
2.

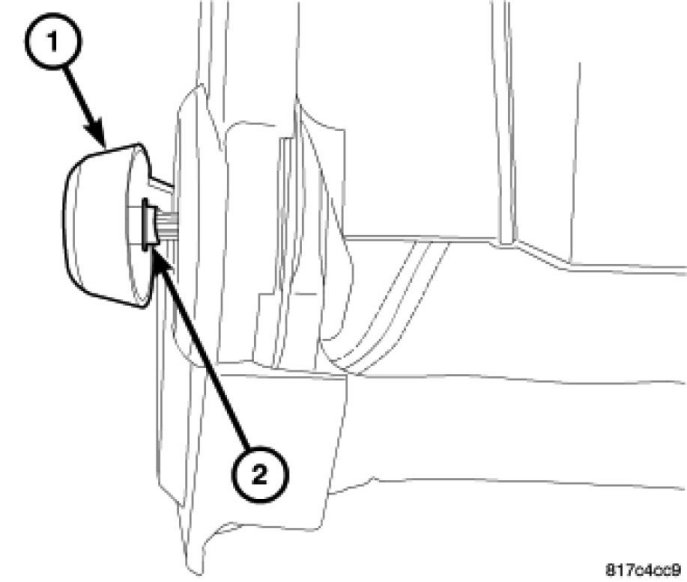

Separate the clip (2)
3.
Remove recliner handle.
