Motor-Seat Adjuster-Front Driver Vertical

Component ID: 233
Component : MOTOR-SEAT ADJUSTER-FRONT DRIVER VERTICAL

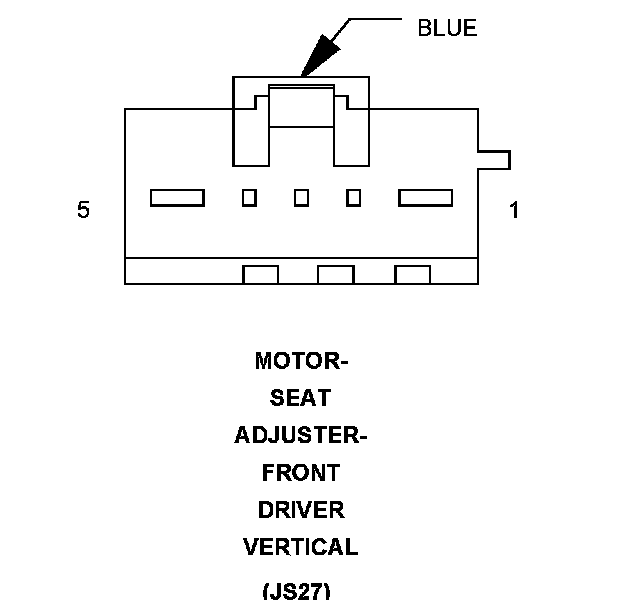

Connector:
Name : MOTOR-SEAT ADJUSTER-FRONT DRIVER VERTICAL
Color : BLUE
# of pins : 5
Qualifier : (JS27)




Pin Circuit Description
1 P21 16LG/TN DRIVER SEAT FRONT DOWN DRIVER
2 - -
3 - -
4 - -
5 P19 16LG/LB DRIVER SEAT FRONT UP DRIVER

Component Location - 66

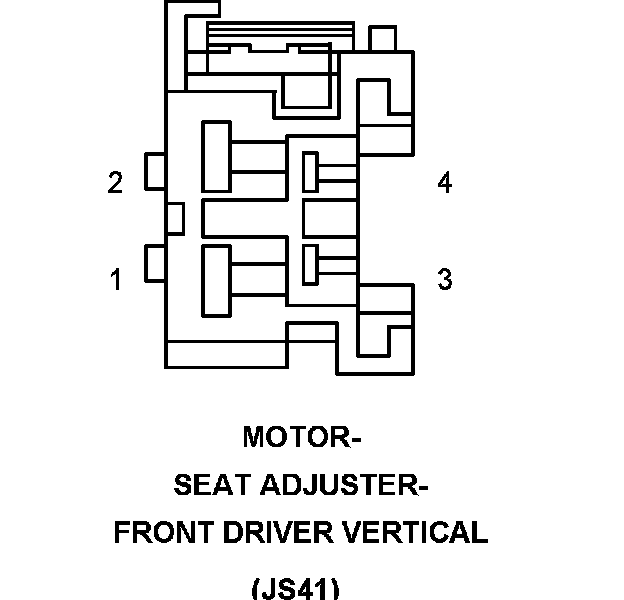

Connector:
Name : MOTOR-SEAT ADJUSTER-FRONT DRIVER VERTICAL
Color :
# of pins : 4
Qualifier : (JS41)
Gender : FEMALE




Pin Circuit Description
1 P19 16LG/LB DRIVER SEAT FRONT UP DRIVER
2 P21 16LG/TN DRIVER SEAT FRONT DOWN DRIVER
4 - -

Component Location - 66
