Top - Retractable Hard Top - RHT

INSTALLATION

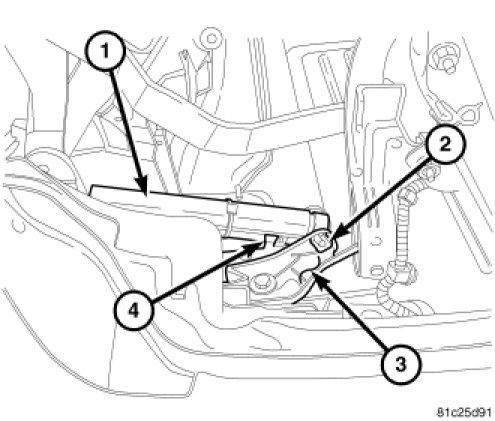

1. At the hydraulic cylinder, insert the line end and slide the retaining clamp around the line end.

NOTE: The hydraulic system uses ARAL VITAMOL ZH-M fluid. When replacing components or topping off system due to leak, make sure to use only approved fluid.





2. Place the hydraulic cylinder onto mounts and install fasteners.
3. Remove the prop holding the top.
4. Close the top.
