One Passenger Door Fails To Lock and Unlock

*ONE PASSENGER DOOR FAILS TO LOCK AND UNLOCK





For a complete wiring diagram Consult Diagrams/Electrical.





NOTE: This test does not cover a Secondary Latch problem on a right hand drive vehicle.

NOTE: For JS27, refer to Latch Graphics for PASSENGER DOOR (RHD).

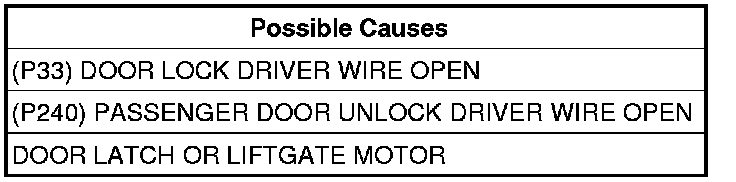

Diagnostic Test

1. TEST FOR DIAGNOSTIC TROUBLE CODES
Turn the ignition on.
With the scan tool, record and erase DTC's
Operate the Driver Door Lock Switch in all positions several times.
Cycle the ignition from on to off and wait for five seconds.
Turn the ignition on.
With the scan tool, read the active DTC's.
Does the scan tool display any Power Door Lock related DTC's?

No

- Go to 2

Yes

- Diagnose and repair the DTC(s).


2. CHECK DOOR LOCK MOTOR CIRCUIT




Turn the ignition off.
Disconnect the inoperative Door Latch (Motor) connector.

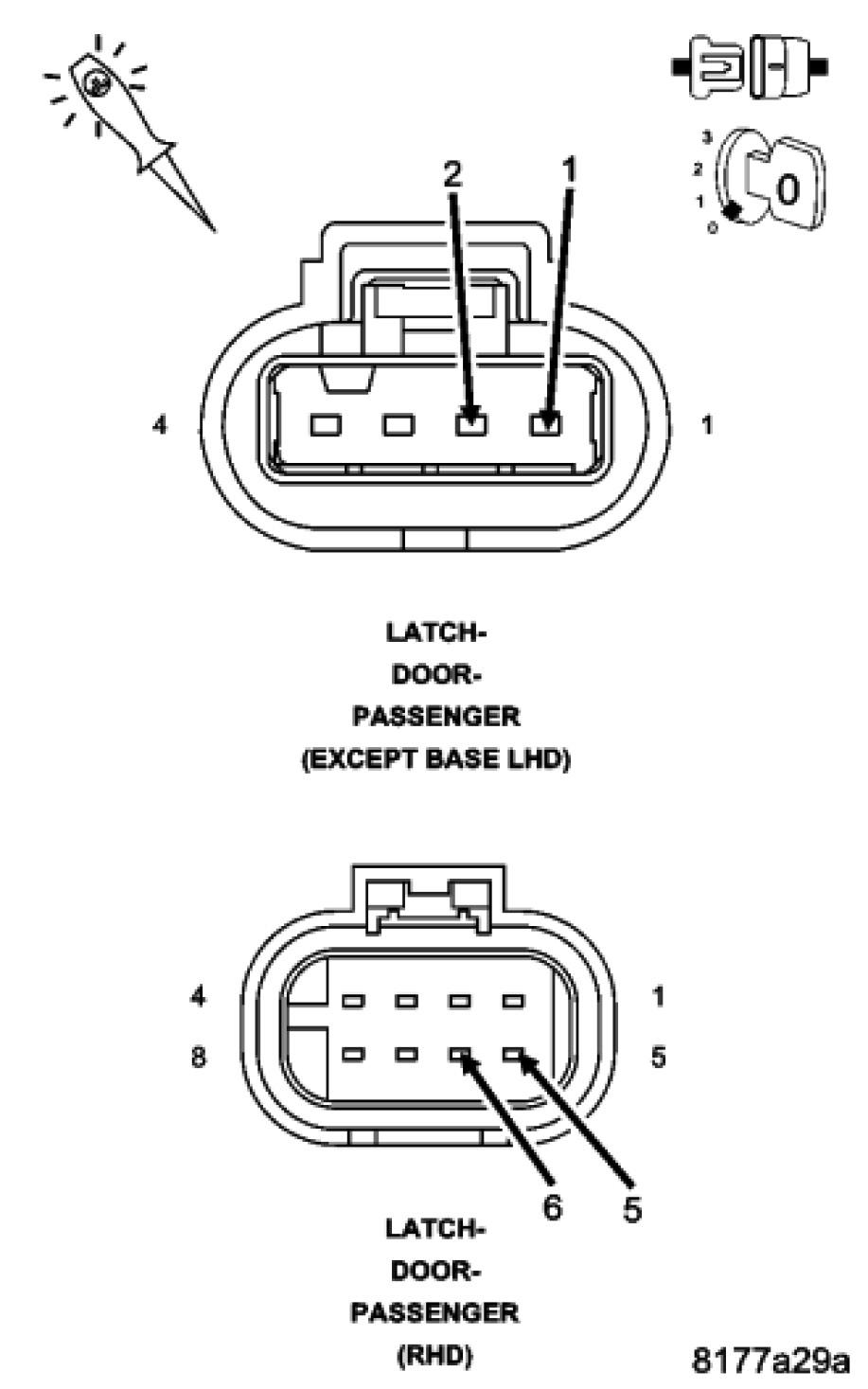

Connect a 12-volt test light between the (P33) Door Lock Driver and the (P240) Passenger Door Unlock Driver circuits in the latch connector.

NOTE: Graphic shows the Passenger Front Latch - all others similar.

Remove the key from the ignition switch.
Operate the door locks several times in the lock and unlock positions from the door lock switch and observe the test light.
Does the test light illuminate brightly when the locks are actuated in both directions?

Yes

- Replace the Door latch Assembly (or motor).
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go to 3


3. (P240) PASSENGER DOOR UNLOCK DRIVER WIRE OPEN




Turn the ignition on.

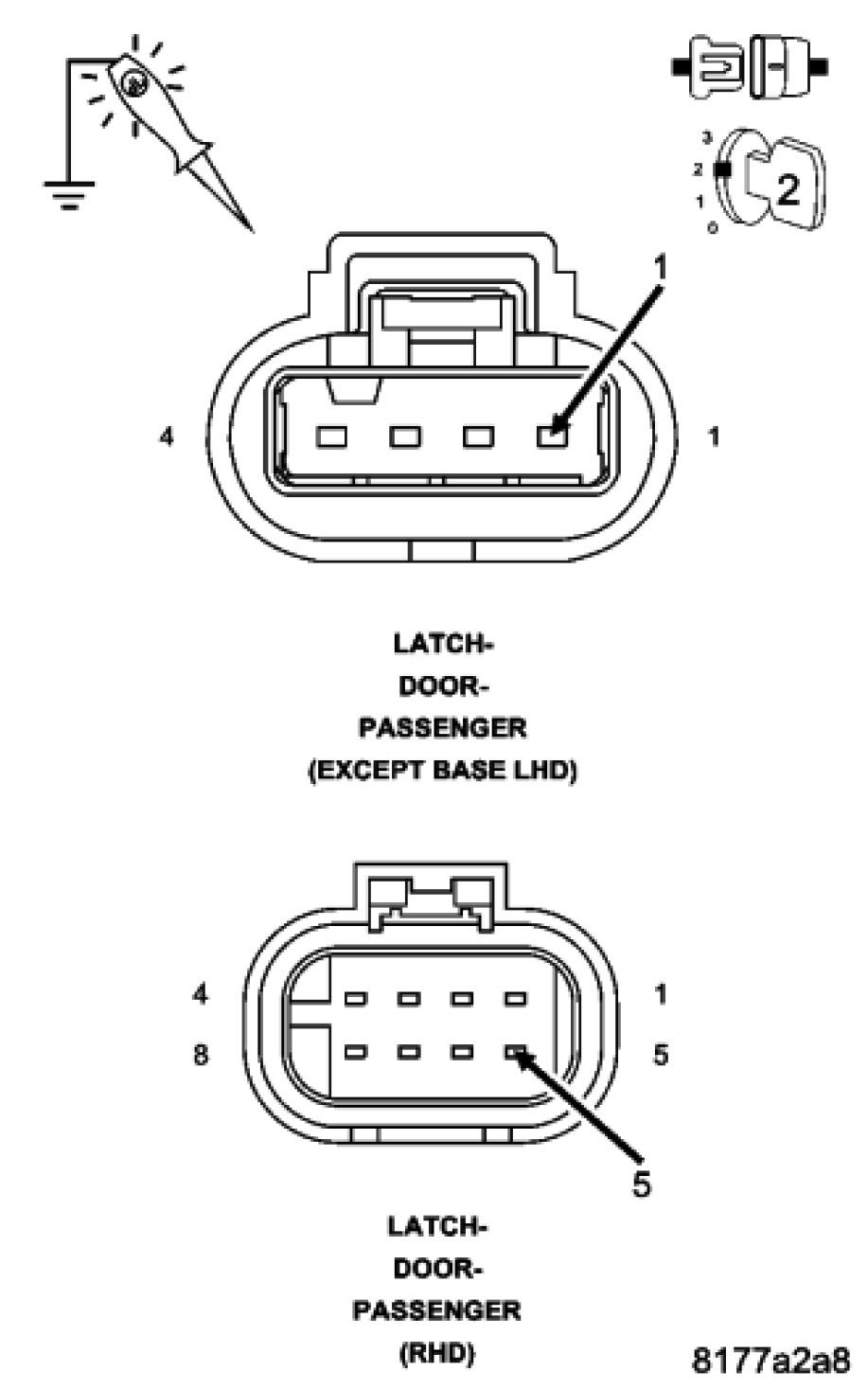

Using a 12-volt test light connected to ground, check the (P240) Passenger Door Unlock Driver circuit.
With the scan tool, actuate the Passenger Door Unlock Relay.
Does the test light illuminate brightly when the relay is actuated?

Yes

- Go to 4

No

- Repair the (P240) Passenger Door Unlock Driver wire for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

4. (P33) DOOR LOCK DRIVER WIRE OPEN

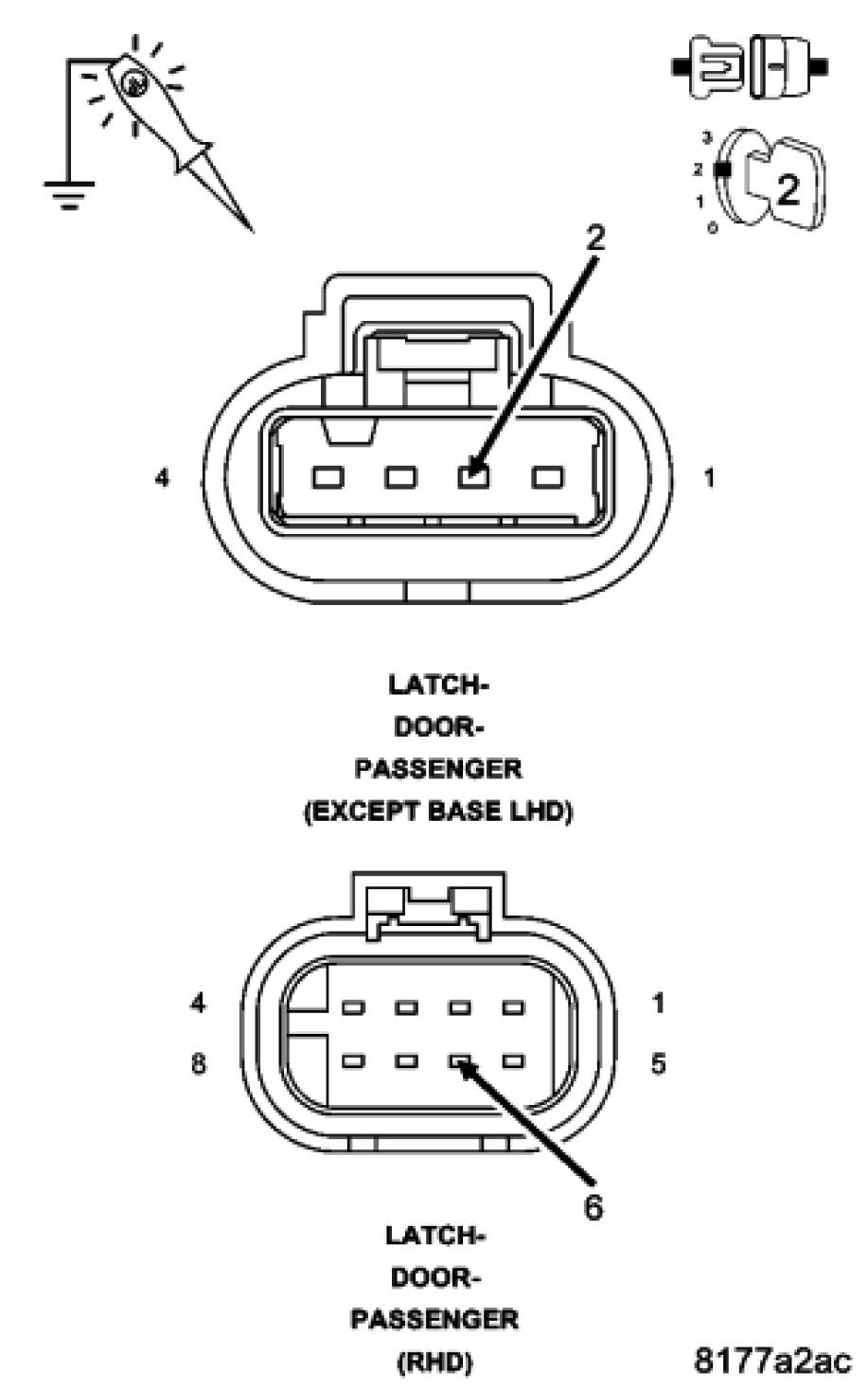

Using a 12-volt test light connected to ground, check the (P33) Door Lock Driver circuit.
With the scan tool, actuate the Door Lock Relay.
Does the test light illuminate brightly when the relay is actuated?

Yes

- Test Complete.

No

- Repair the (P33) Door Lock Driver wire for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
