Cowl Trim - Installation







INSTALLATION

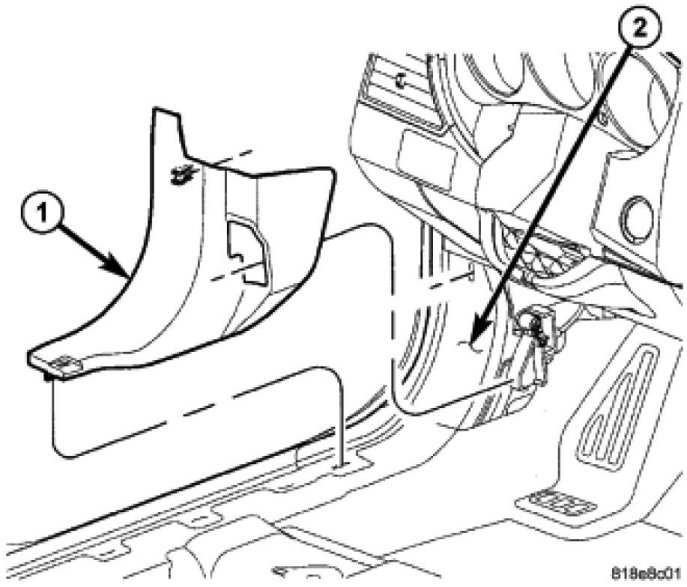

1. Position cowl trim panel to vehicle.
2. Hand press cowl trim panel to corresponding holes in sheet metal (2).
3. Install door sill trim panel.Door Sill Scuff Plate - Installation
