Center Console Shifter Housing - Installation

INSTALLATION

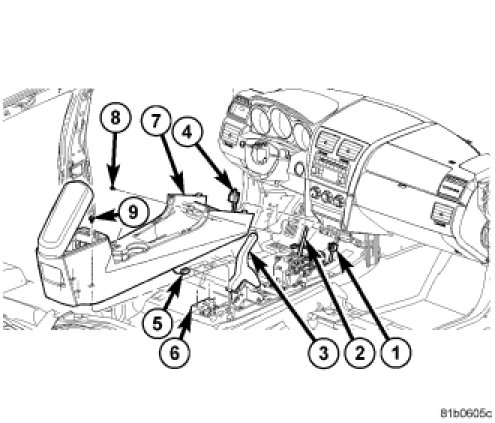

AVENGER





1. If equipped, connect center console housing wire connector (5) with instrument panel connector (1).
2. Place console housing (7) over shifter lever (3) ensuring console tabs seat properly.
3. Install four screws (9) in the console compartment.
4. Install two screws (8) in the front of the console.
5. Install console bezel Center Console Bezel - Installation.
6. Replace shift bezel and knob Console Shifter Bezel - Installation.

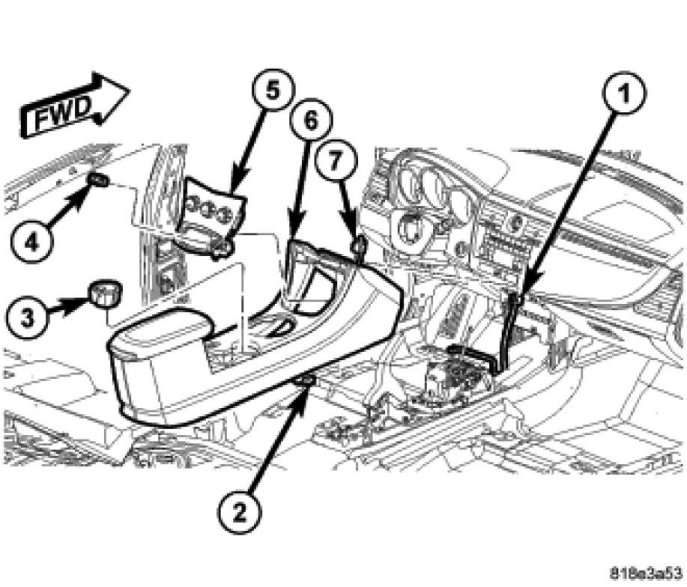

SEBRING





7. If equipped, connect center console housing wire connector (2) with instrument panel connector.
8. Place console housing (6) over shifter lever ensuring console tabs seat properly.




9. Install screws (6).
10. Install screws (5)




11. Install console bezel (1).Instrument Panel Center Bezel - Installation
12. Replace shift bezel and knob. Console Shifter Bezel - Installation Console Shifter Bezel - Installation.
