Home >> Chrysler >> 2008 >> Sebring Convertible L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Description and Operation

Front Door: Description and Operation







DESCRIPTION

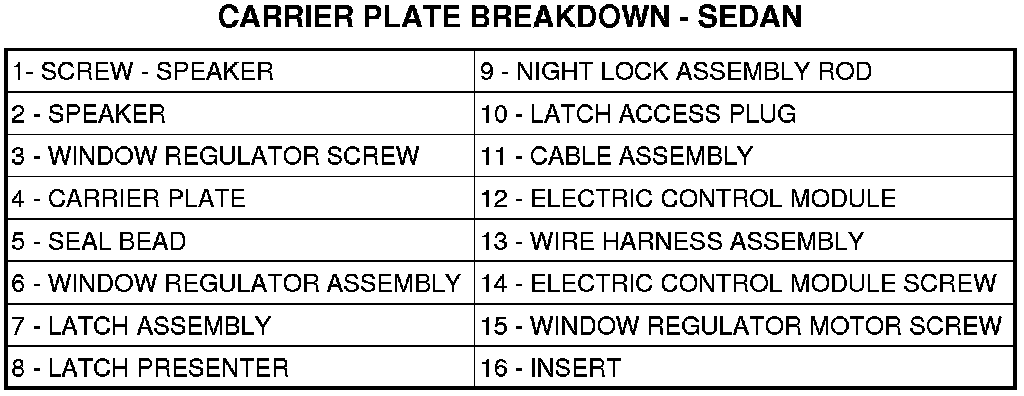

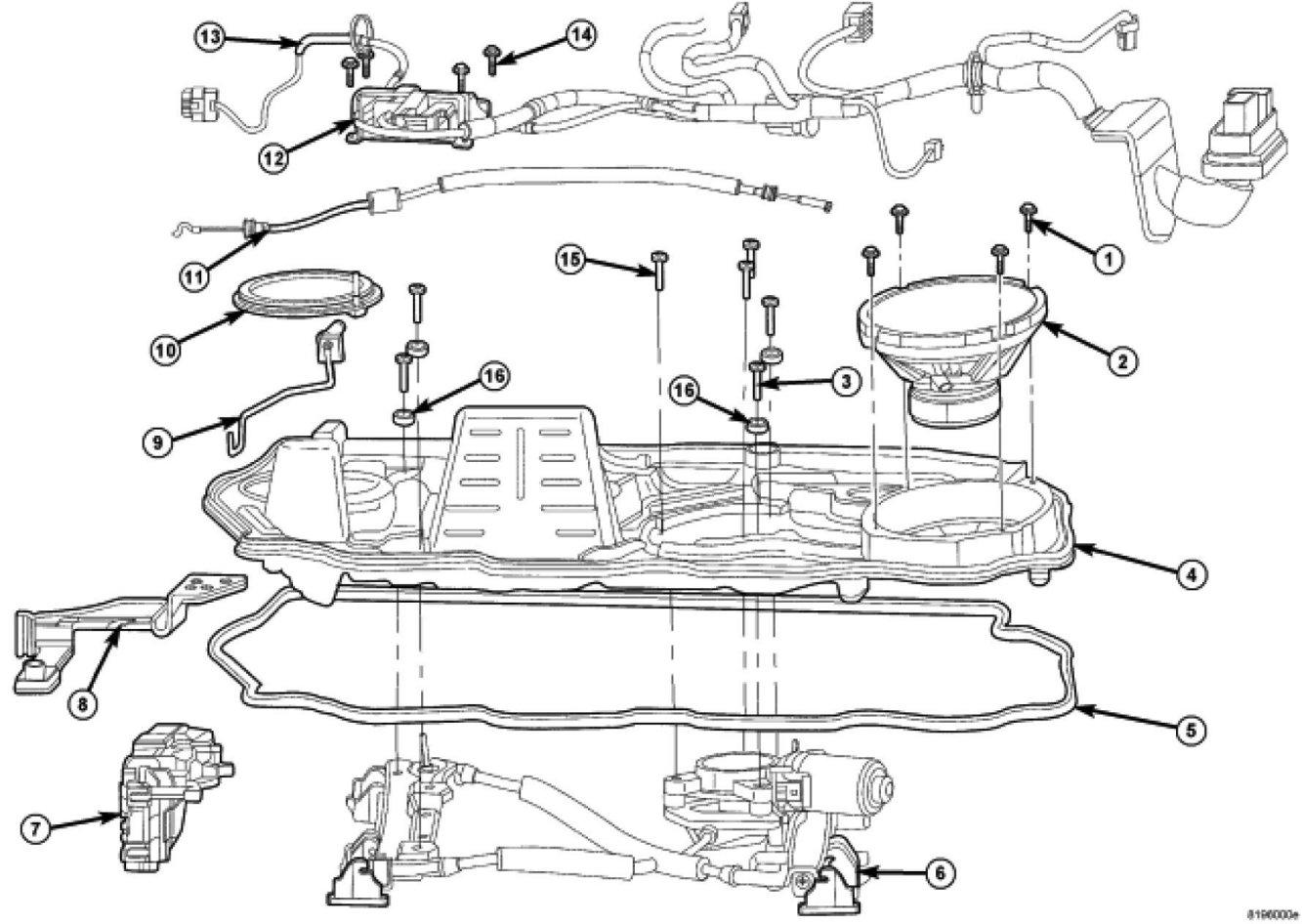

CARRIER PLATE- JS41

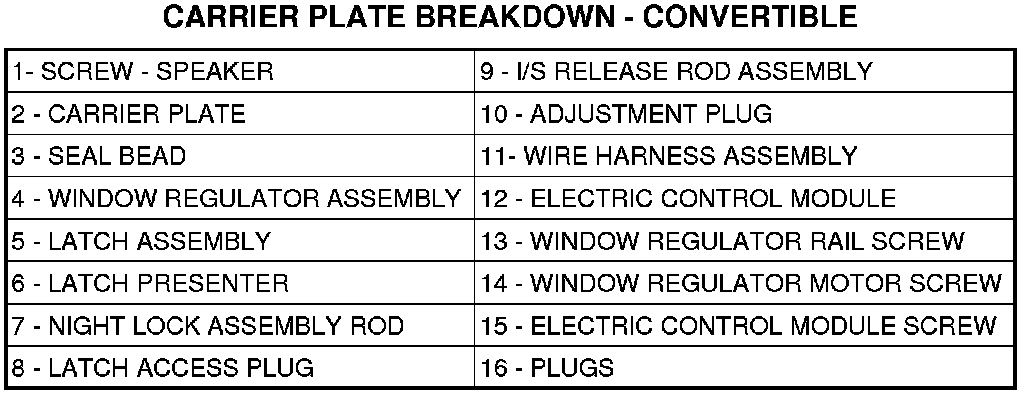

CARRIER PLATE- JS27
