U110C-LOST FUEL LEVEL MESSAGE





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Ignition on.

- Set Condition:
When the PCM does not receive a fuel level signal over the CAN C circuit. The circuit is constantly monitored.





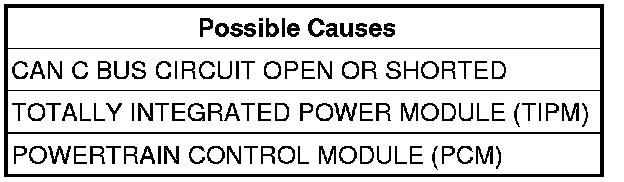

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Initial Inspection and Diagnostic Overview.

Theory of Operation

The fuel level signal is a direct input to the Cluster. The fuel level signal is sent to the TIPM over the CAN B bus circuit. The PCM receives the fuel level signal from the TIPM over the CAN C bus circuit.

Diagnostic Test

1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting any of the network components allows access to the source of the problem.

Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.Checking For An Intermittent DTC
- Perform the PCM Verification Test Ver. 1Powertrain Verification Test

2. U0141-LOST COMMUNICATION WITH IPM (FCM/TIPM) ALSO ACTIVE
With the scan tool read DTCs.
Is the DTC U0141-LOST COMMUNICATION WITH IPM (FCM/TIPM) also set?

Yes

- Perform the diagnostic procedure for U0141-LOST COMMUNICATION WITH IPM (FCM/TIPM). U0141
- Perform the PCM Verification Test Ver. 1Powertrain Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1Powertrain Verification Test
