Audio/Video

U0019-CAN B BUS

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
- Continuously.
- Set Condition:
- Whenever the CAN B BUS (+) or B BUS (-) circuit is open, shorted to voltage or shorted to ground, this code will set.





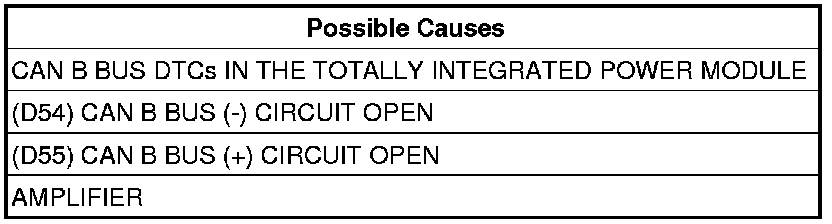

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
With the scan tool, record and erase DTCs.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display: U0019-CAN B BUS CIRCUIT?

Yes

- Go to 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

2. CHECK TOTALLY INTEGRATED POWER MODULE DTCs
With the scan tool, read Totally Integrated Power Module DTCs
Does the scan tool display any CAN B BUS DTCs - ACTIVE?

Yes

- Diagnose and repair the DTC(s).


No

- Go to 3

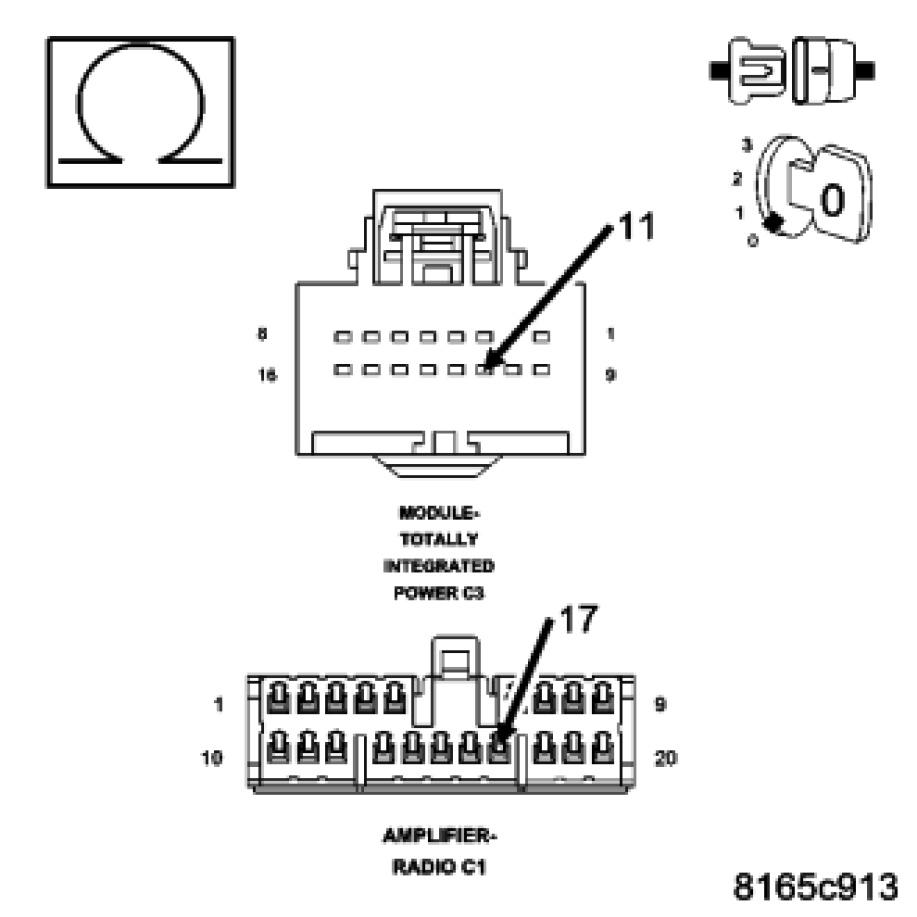

3. CAN B BUS (+) CIRCUIT OPEN




Turn the ignition off.
Disconnect the Amplifier C1 harness connector.
Disconnect the Totally Integrated Power Module C3 harness connector.
Measure the resistance of the (D55) CAN B BUS (+) circuit between the Totally Integrated Power Module C3 harness connector and the Amplifier C1 harness connector.
Is the resistance below 2.0 ohms?

Yes

- Go to 4
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test

No

- Repair the CAN B BUS (+) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test

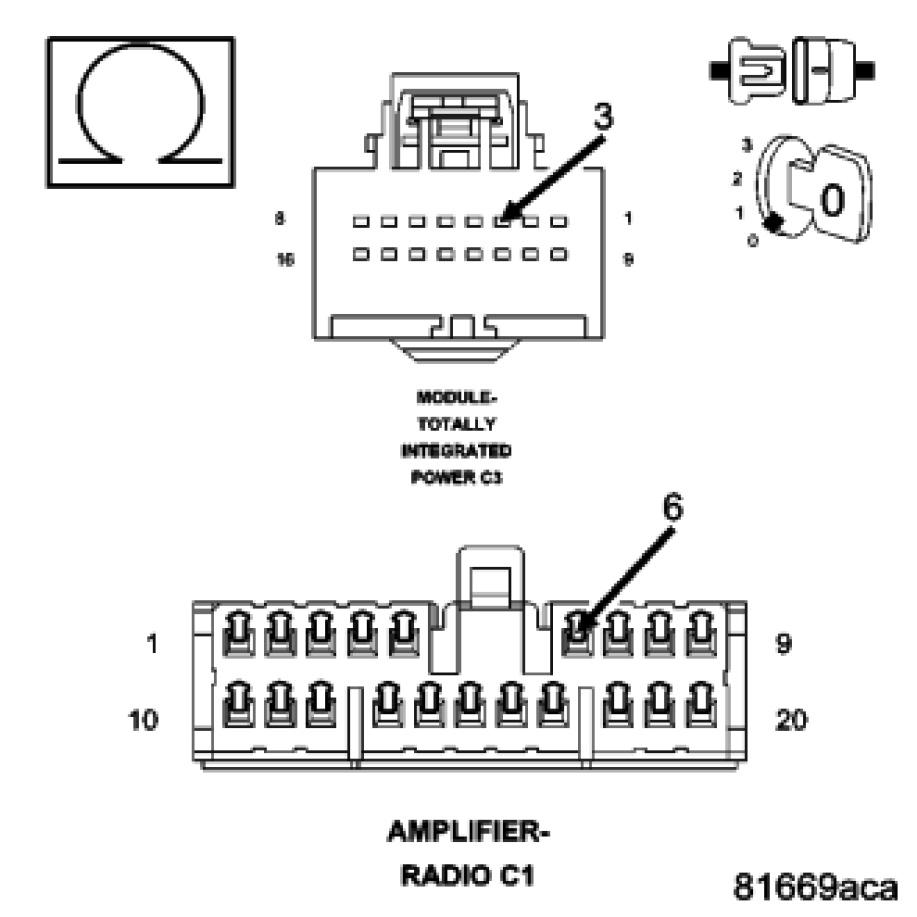

4. CAN B BUS (-) CIRCUIT OPEN




Measure the resistance of the (D54) CAN B BUS (-) circuit between the Totally Integrated Power Module C3 harness connector and the Amplifier C1 harness connector.
Is the resistance below 2.0 ohms?

Yes

- Replace the Amplifier.
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test

No

- Repair the CAN B BUS (-) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test
