P061A-ETC LEVEL 2 TORQUE PERFORMANCE





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
With the engine running.

- Set Condition:

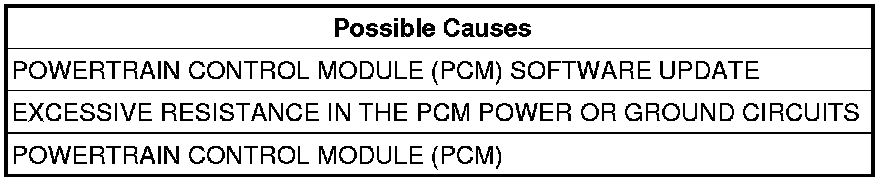

The Powertrain Control Module (PCM) detects an internal error.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.Initial Inspection and Diagnostic Overview

Diagnostic Test

1. DTC IS ACTIVE

NOTE: Diagnose and repair any other DTCs set in the PCM before proceeding with this test.

NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause this DTC to set.

Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify that the PCM is at the latest calibration (flash level). If necessary, update the PCM.
Start the engine and allow it to reach operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the DTC Active at this time?

Yes

- Go to 2

No

- Test complete.
- Perform the PCM Verification Test. Powertrain Verification Test

2. CHECKING THE PCM POWER AND GROUND CIRCUITS
Perform the diagnostic procedure for *CHECKING THE PCM POWER AND GROUND CIRCUITS. Checking the PCM Power and Ground Circuits
Were any problems found?

Yes

- Repair the PCM power and ground circuit(s) as necessary.
- Perform the PCM Verification Test. Powertrain Verification Test

No

- Go to 3

3. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the applicable component and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Search for any Technical Service Bulletins that may apply.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test. Powertrain Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test. Powertrain Verification Test
