P0506-IDLE SPEED PERFORMANCE LOWER THAN EXPECTED

For a complete wiring diagram Consult Diagrams/Electrical.

Theory of Operation

The objective of the Idle Speed Rationality monitor is to evaluate the ability of the idle speed control system to achieve and maintain a steady idle, by monitoring engine RPM during idle. If engine RPM is not within a calibrated deadband of target idle speed, a timer is started. If the timer reaches a maximum threshold without any sign of the RPM trending towards control, a fault is generated.

- When Monitored:
With the engine idling in drive, the brake applied, engine run time above a minimum calibrated value, and no VSS, MAF/MAP, ECT, TPS, ETC, CKP Sensor, fuel system, or injector DTCs present.

- Set Condition:
Engine speed is 100 RPM or more below target idle speed for 30 seconds. Two Trip Fault. Three good trips to turn off the MIL.

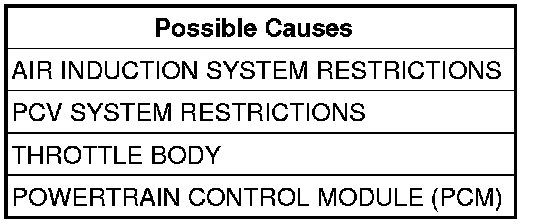

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.Initial Inspection and Diagnostic Overview

Diagnostic Test

1. ACTIVE DTC

NOTE: It is possible for ETC DTCs to be set at the same time as this DTC. Proceed with this test only if the other DTCs that are present are ETC related, but clear them before proceeding. If any other DTCs are set, they must be diagnosed and repaired before continuing this test.

Start the engine and allow it to reach operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

With a scan tool, select View DTCs.
Is the DTC Active at this time?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking For An Intermittent DTC

2. AIR INDUCTION SYSTEM
Inspect the air induction system for the following problems:
Restrictions - dirty air cleaner, foreign material trapped in the air intake tube, etc.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test. Powertrain Verification Test

No

- Go to 3

3. PCV SYSTEM
Inspect the PCV system for the following problems:
Restrictions - sticking valve, collapsed hoses or tubes, obstructed passages or ports, etc.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test. Powertrain Verification Test

No

- Go to 4

4. THROTTLE BODY OPERATION
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

Inspect the throttle body for carbon build up or other restrictions.
Using a straight edge, verify that the throttle plate is not bent. If the throttle plate is bent, the throttle body must be replaced.
Start the engine.
While the engine is running, lightly tap on the ETC Motor, and listen for the idle to change. If the idle changes, the throttle body must be replaced.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test.Powertrain Verification Test

No

- Go to 5

5. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the throttle body and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Throttle Body and Powertrain Control Module connectors.
Search for any Technical Service Bulletins that may apply.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test.Powertrain Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test.Powertrain Verification Test
