C1008

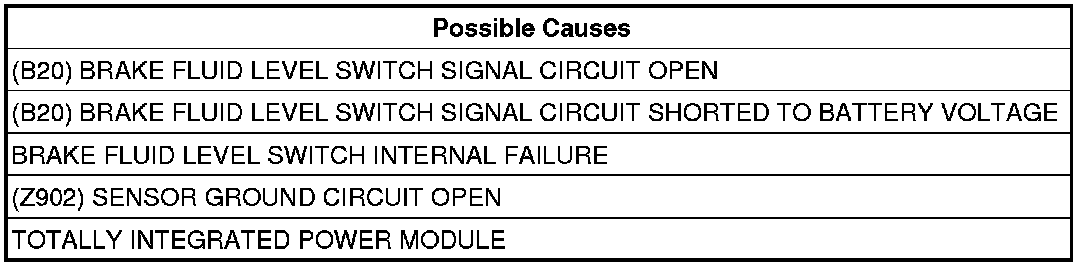

C1008-BRAKE FLUID LEVEL CIRCUIT HIGH

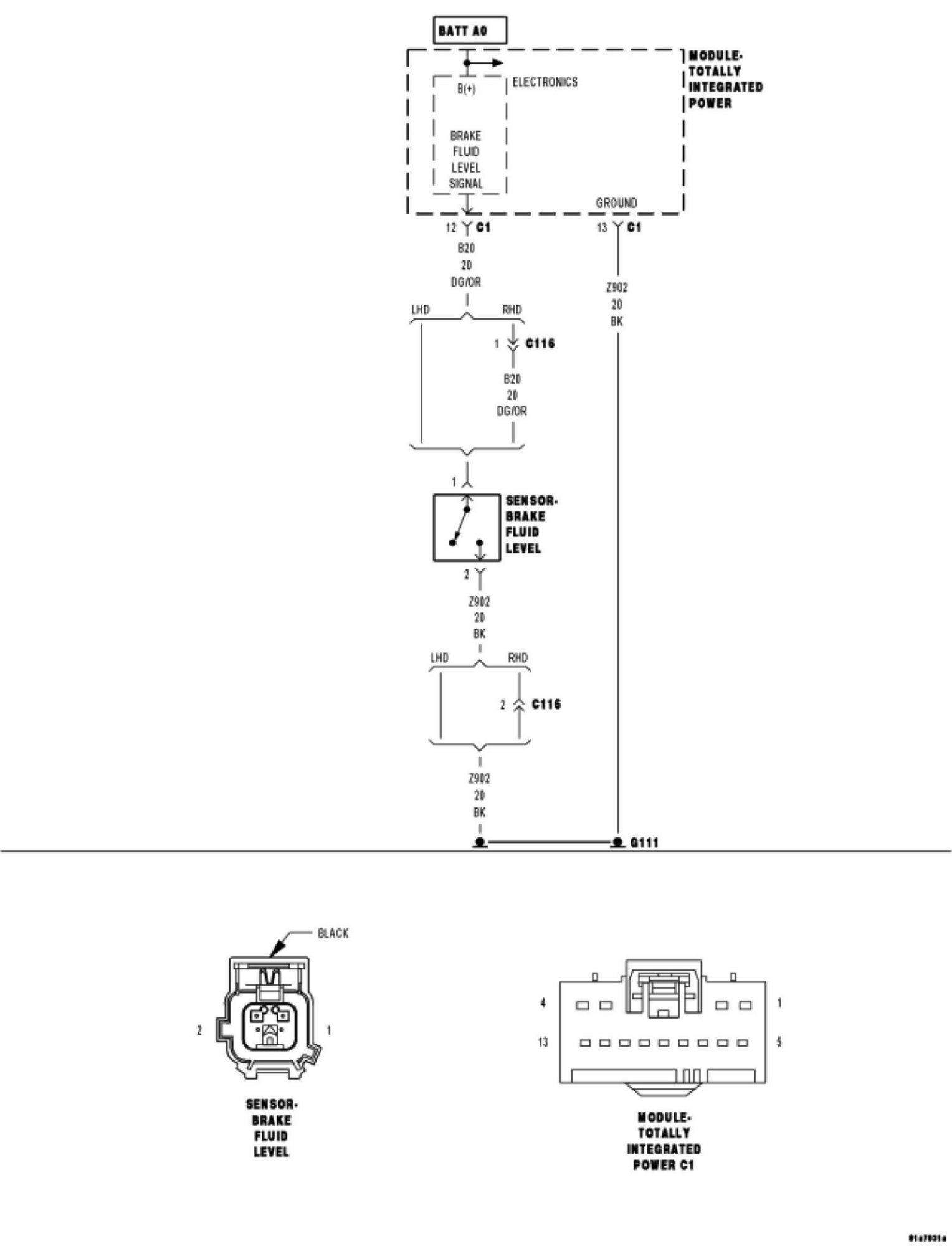

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on.

- Set Condition:
When the Totally Integrated Power Module indicates that the Brake Fluid Level Circuit is greater than 4.9 volts for more than 5 seconds.





Diagnostic Test

1. BRAKE FLUID LEVEL SWITCH SIGNAL VOLTAGE ABOVE 4.9 VOLTS
NOTE: This DTC must be active for the results of this test to be valid.

Turn the ignition on.
With the scan tool, read Fuel Level Switch Signal voltage.
Is the voltage above 4.9 volts?

Yes

- Go to 2

No

- Refer to the ABS-INTERMITTENT CONDITION TEST. ABS Intermittent Condition Test

2. (B20) BRAKE FLUID LEVEL SWITCH SIGNAL CIRCUIT FOR SHORT TO BATTERY VOLTAGE




Turn the ignition off.
Disconnect the Brake Fluid Level Switch harness connector.
Turn the ignition on.

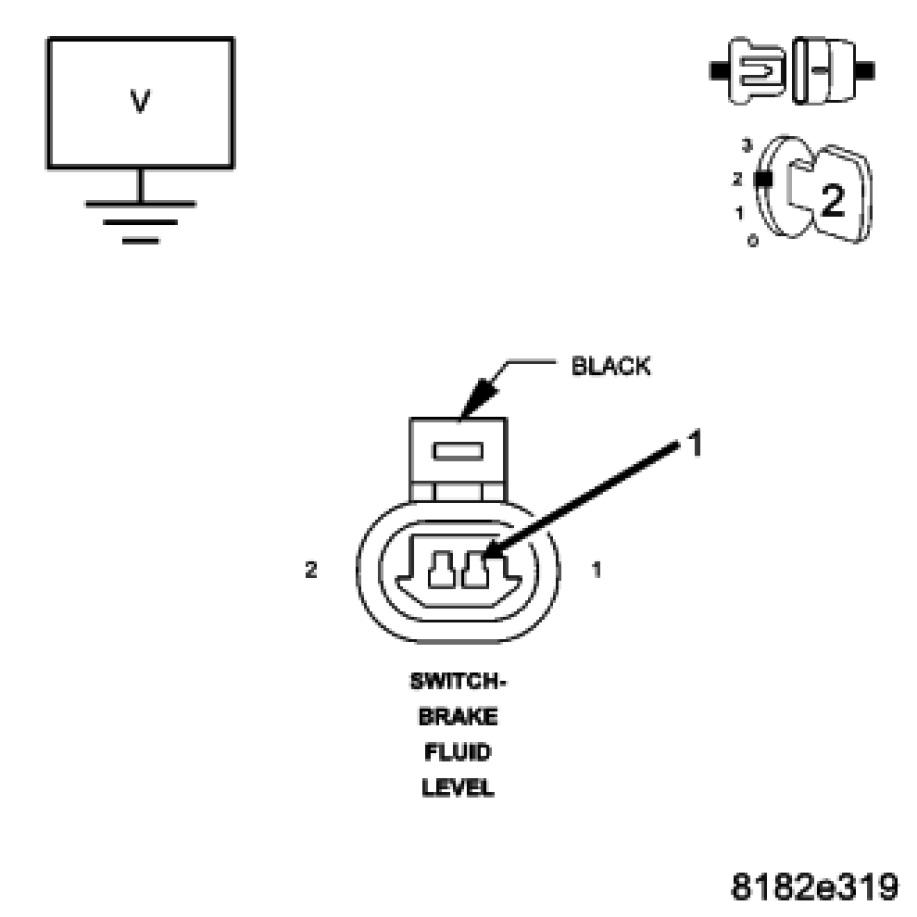

Measure the voltage of the (B20) Brake Fluid Level signal circuit in the Brake Fluid Level Switch harness connector to ground.
Is the voltage above 5.2 volts?

Yes

- Repair the (B20) Brake Fluid Level signal circuit for a short to voltage.
- Perform ABS VERIFICATION TEST. ABS Verification Test.

No

- Go to 3

3. BRAKE FLUID LEVEL SWITCH INTERNAL FAILURE




Turn the ignition off.

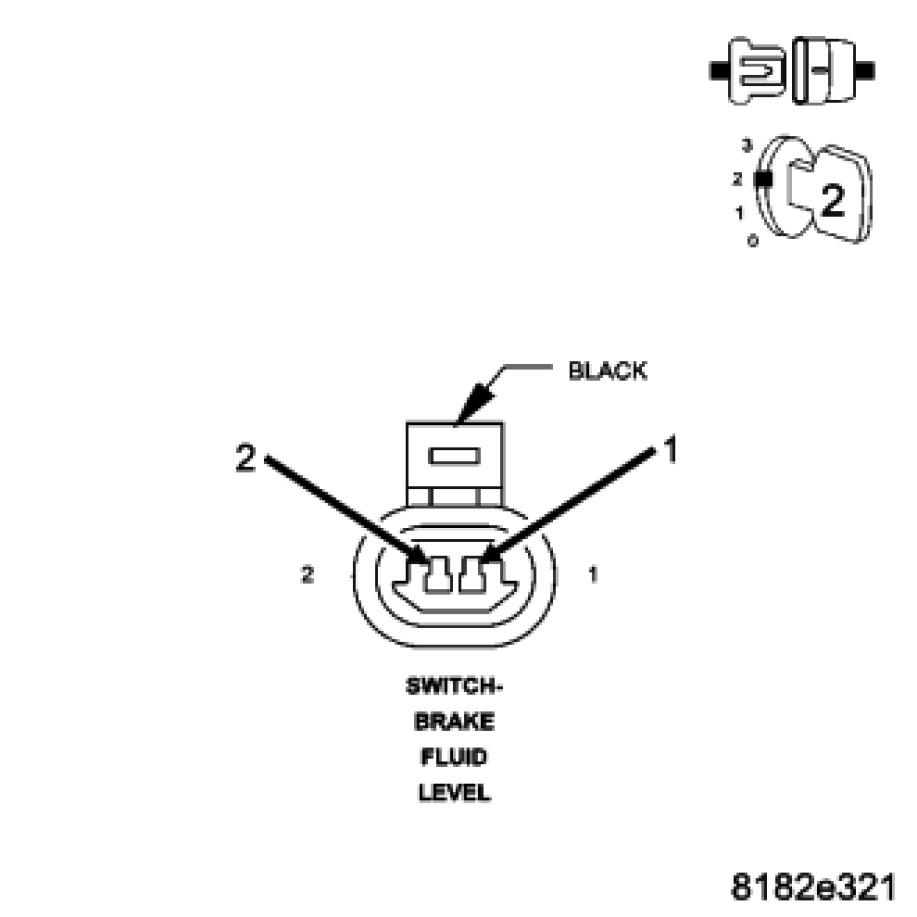

Connect a jumper wire between the (B20) Brake Fluid Level signal circuit and the (Z902) Brake Fluid Level ground circuit in the Brake Fluid Level Switch harness connector
Turn the ignition on.
With the scan tool, read the Brake Fluid Level Switch voltage.
Is the voltage below 1.0 volt?

Yes

- Replace the Brake Fluid Level Switch.
- Perform ABS VERIFICATION TEST. ABS Verification Test.

No

- Go to 4

4. (B20) BRAKE FLUID LEVEL SWITCH CIRCUIT OPEN




Turn the ignition off.
Disconnect the Brake Fluid Level Switch.
Disconnect the TIPM harness connector.

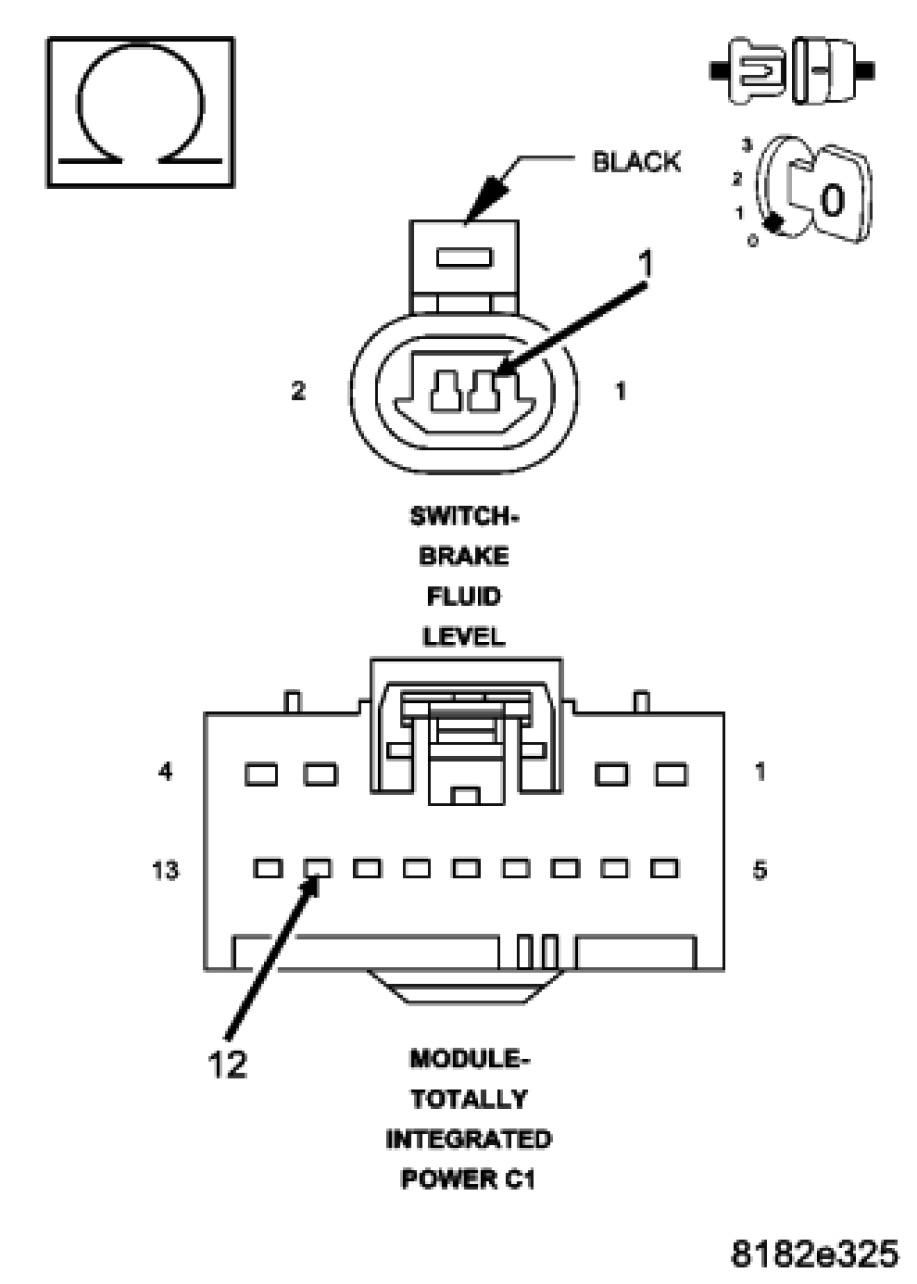

Measure the resistance of the (B20) Brake Fluid Level signal circuit between the Brake Fluid Level Switch harness connector and the TIPM harness connector.
Is the resistance below 5 ohms?

Yes

- Go to 5

No

- Repair the open in the (B20) Brake Fluid Level Switch signal circuit.
- Perform ABS VERIFICATION TEST. ABS Verification Test.

5. (Z902) SENSOR GROUND CIRCUIT OPEN




Turn the ignition off.
Disconnect the Brake Fluid Level Switch harness connector.
Reconnect the TIPM harness connector.

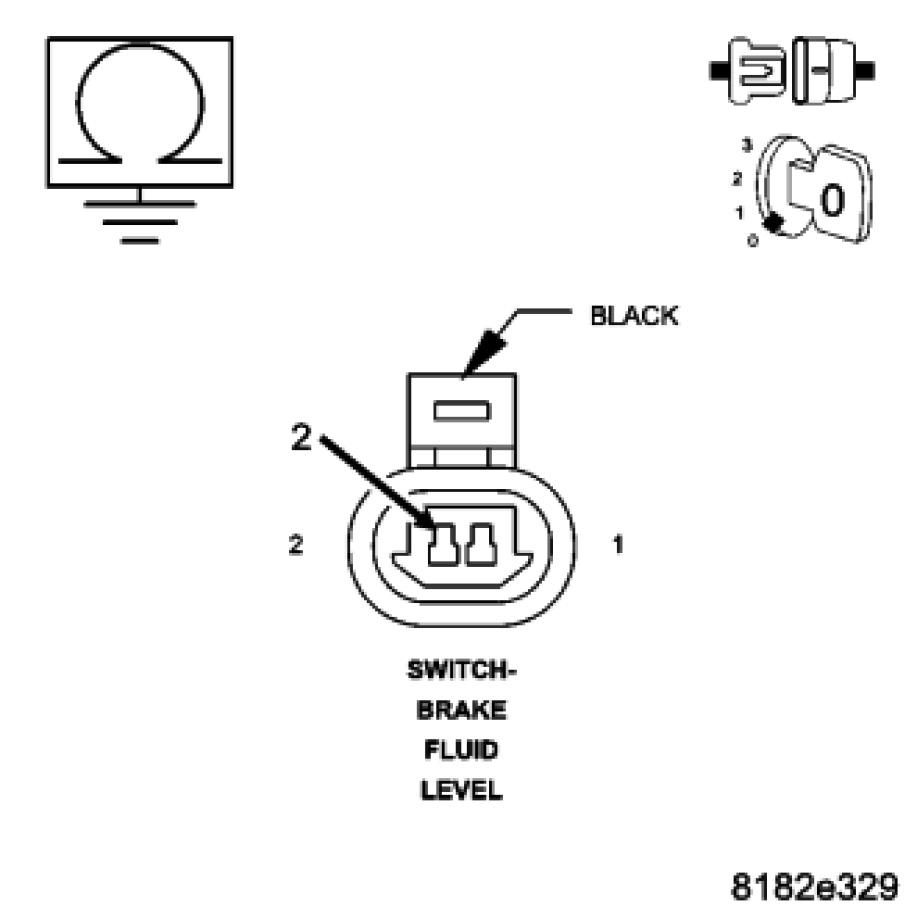

Measure the resistance of the (Z902) Brake Fluid Level Switch ground circuit between the Brake Fluid Level Switch harness connector and ground.
Is the resistance below 5.0 ohms?

Yes

- Replace and program the Totally Integrated Power Module.
- Perform ABS VERIFICATION TEST. ABS Verification Test.

No

- Repair the open in the (Z902) Sensor ground circuit.
- Perform ABS VERIFICATION TEST. ABS Verification Test.
