B2515

B2515-REAR WINDOW POSITION SENSOR SUPPLY CIRCUIT LOW - PTCM - JS27

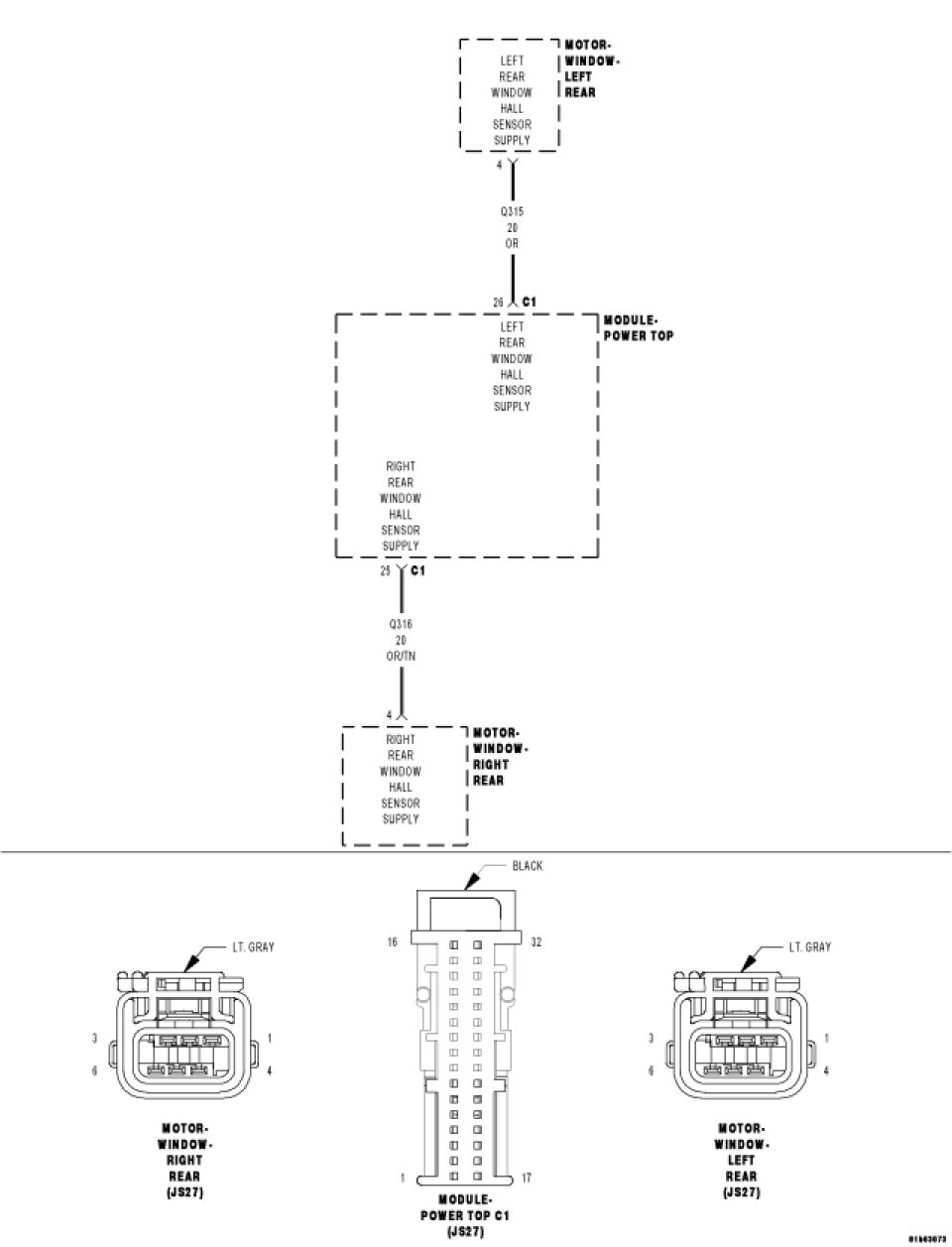

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Whenever the module is awake.

- Set Condition:
When if either the Left Rear or Right Rear Window Hall Sensor Supply circuit falls below 2.0 volts of battery voltage for over 500ms.,this code will set.





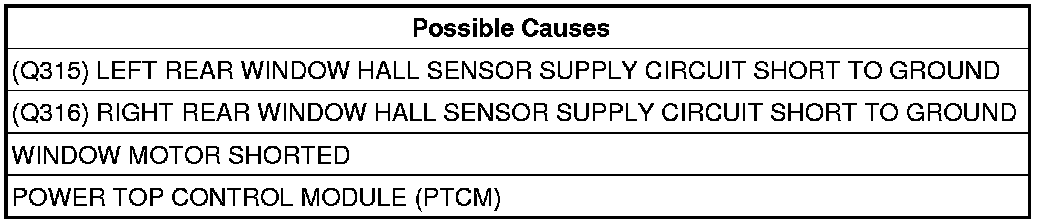

Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
With the scan tool, record and erase DTC's
Operate both rear windows up and down several times.
Wait 30 seconds.
With the scan tool, read DTC's.
Does the scan tool display B2515-REAR WINDOW POSITION SENSOR SUPPLY CIRCUIT LOW?

Yes

- Go to 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. LEFT REAR WINDOW MOTOR SHORTED




Turn the ignition off.
Disconnect the Left Rear Window Motor connector.
Turn the ignition on.
Measure the voltage between ground and the (Q315) Left Rear Window Hall Sensor Supply circuit.
Is the voltage above 10.5 volts?

Yes

- Replace the Left Rear Window Motor.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go to 3

3. RIGHT REAR WINDOW MOTOR SHORTED




Turn the ignition off.

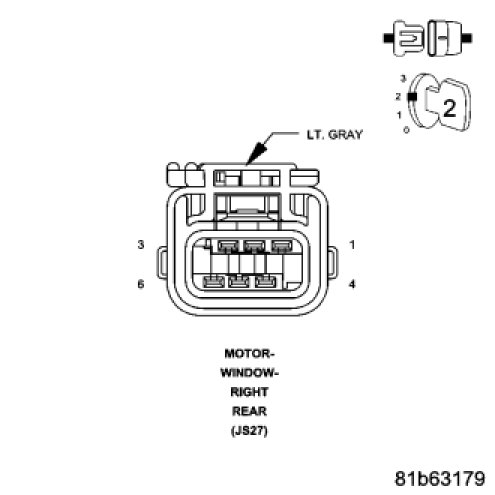

Disconnect the Right Rear Window Motor connector.
Turn the ignition on.
Measure the voltage between ground and the (Q316) Right Rear Window Hall Sensor Supply circuit.
Is the voltage above 10.5 volts?

Yes

- Replace the Right Rear Window Motor.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go to 4

4. (Q315) LEFT REAR WINDOW HALL SENSOR SUPPLY CIRCUIT SHORT TO GROUND




Turn the ignition off.
Disconnect the Power Top Control Module C1 connector.

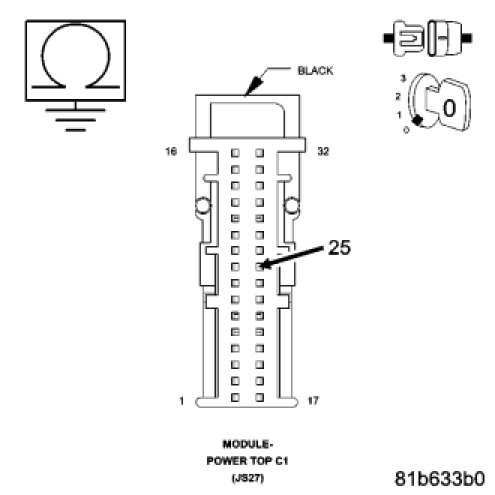

Measure the resistance between Ground and the (Q315) Left Rear Window Hall Sensor Supply circuit.
Is the resistance below 1000.0 ohms?

Yes

- Repair the (Q315) Left Rear Window Hall Sensor Supply circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go to 5

5. (Q316) RIGHT REAR WINDOW HALL SENSOR SUPPLY CIRCUIT SHORT TO GROUND




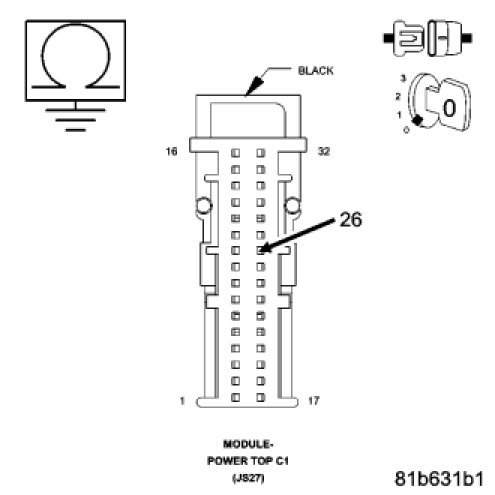

Measure the resistance between Ground and the (Q316) Right Rear Window Hall Sensor Supply circuit.
Is the resistance below 1000.0 ohms?

No

- Repair the (Q316) Right Rear Window Hall Sensor Supply circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

Yes

- Replace the Power Top Control Module (PTCM).
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
