B1B8F
B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN
For a complete wiring diagram Consult Diagrams/Electrical.
- When Monitored:
While the CAN bus ignition status is in IGN_RUN and the module is configured for a Seat Track Position Sensor, the module checks the sensor input current ranges.
- Set Condition:
This DTC may set when the module detects that the sensor input current is below 1 mA.
Diagnostic Test
1. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)
With the scan tool, read Occupant Restraint Controller (ORC) DTCs.
Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?
Yes
- Diagnose and repair the DTCs.
No
- Go to 2
2. VERIFY THAT DTC B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN IS ACTIVE
Does the scan tool display active: B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN?
Yes
- Go to 3
No
- Go to 7
3. INSPECT DRIVER SEAT HARNESS WIRES AND CONNECTORS
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the Driver Seat Harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
Are any of these conditions present?
Yes
NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist
- Replace the Driver Seat Harness.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
No
- Go to 4
4. VERIFY THAT DRIVER SEAT HARNESS IS ROUTED CORRECTLY
Verify that the Driver Seat Harness is routed correctly.
Is the Driver Seat Harness routed correctly?
Yes
- Go to 5
No
- Reroute the Driver Seat Harness as necessary.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
5. CHECK (R261) DRIVER SEAT POSITION SENSOR DATA CIRCUIT AND (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR AN OPEN
Disconnect the ORC connectors.
Connect the 8443-25 ORC adaptor to the ORC C2 connector.

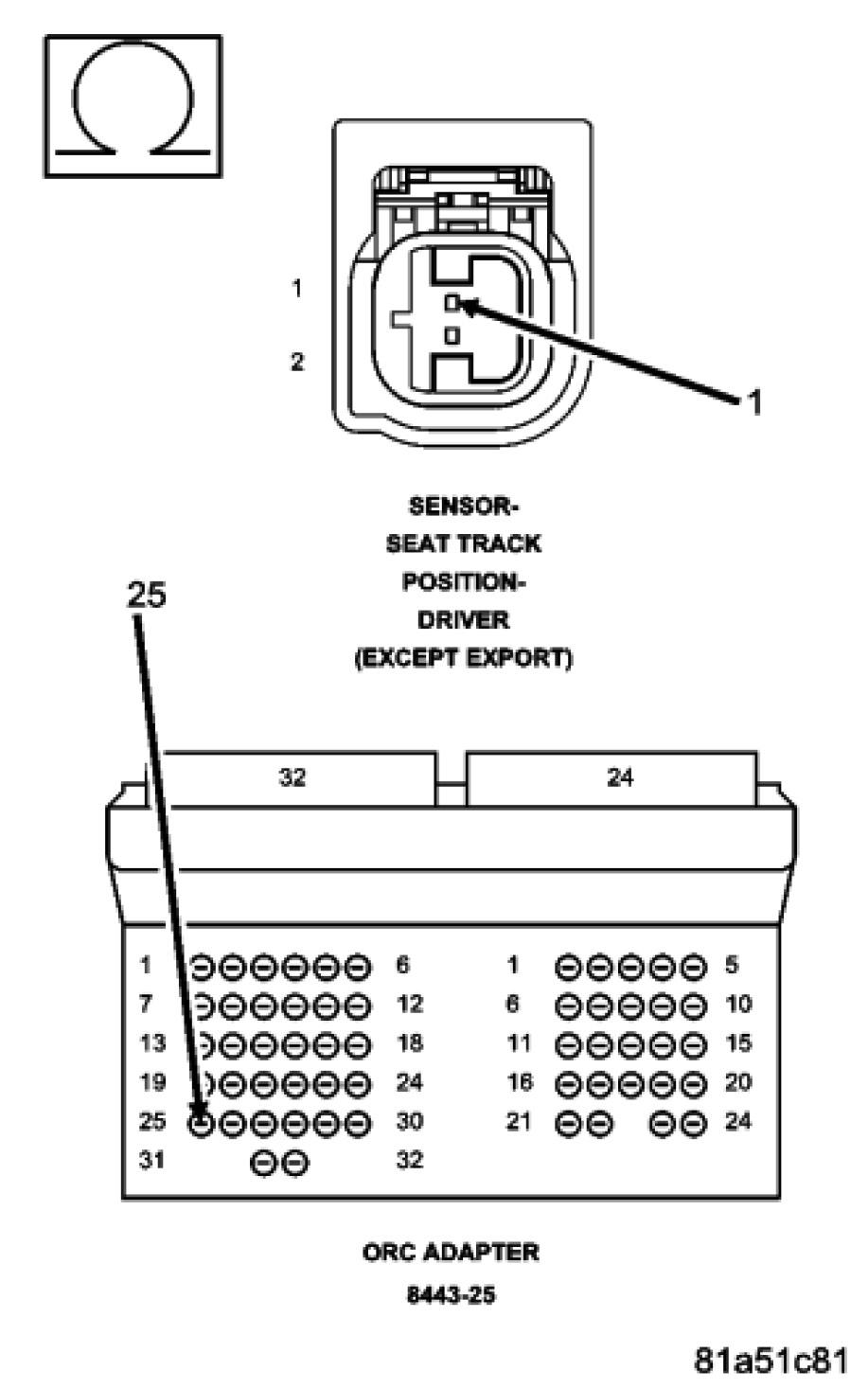

Measure the resistance of the (R261) Driver Seat Position Sensor Data circuit between the ORC-C2 connector cavity C2-25 and the Driver Seat Track Position Sensor connector cavity 1.

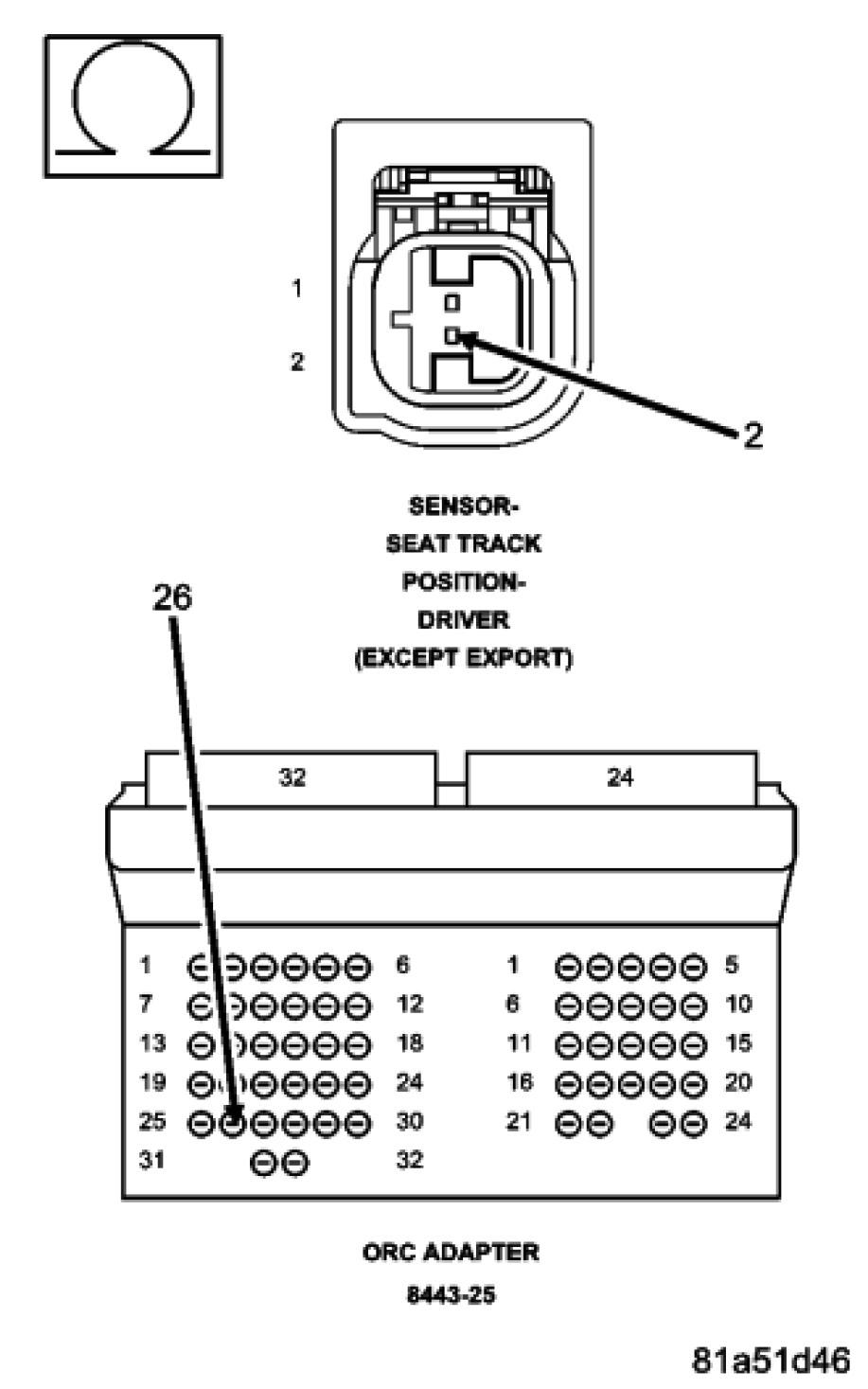

Measure the resistance of the (R263) Driver Seat Position Sensor Voltage circuit between the ORC-C2 connector cavity C2-26 and the Driver Seat Track Position Sensor connector cavity 2.
Is the resistance of either circuit above 5.0 ohms?
Yes
NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
- Replace the Driver Seat Harness.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
No
- Go to 6
6. CHECK OPERATION OF THE DRIVER SEAT TRACK POSITION SENSOR
Replace the Driver Seat Track Position Sensor.
Reconnect the vehicle body harness to the Seat Track Position Sensor.
Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.
Connect the scan tool to the Data Link Connector - use the most current software available.
Use the scan tool and erase the stored codes in all airbag system modules.
Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
Wait one minute, and read active codes and if there are none present read the stored codes.
Did the active Driver Seat Track Position Sensor DTC return?
Yes
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.
- Replace the Occupant Restraint Controller (ORC ).
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
No
- Repair is complete.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
7. TEST FOR AN INTERMITTENT CONDITION
With the scan tool, record and erase all DTC's from the ORC.
If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
The following additional checks may assist you in identifying a possible intermittent problem.
Reconnect any disconnected components and harness connector.
WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.
WARNING: To avoid serious or fatal injury, maintain a safe distance from all airbags while performing the following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.
If only stored codes return continue the test until the problem area has been isolated.
In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTCs present?
Yes
- Diagnose and repair the DTC(s).
No
- No problem found at this time. Erase all codes before returning vehicle to customer.
