B1B72

B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on, the Left Side Impact Sensor 1 is equipped with on board diagnostics to monitor to sensor's internal circuits. If a problem is identified, the sensor sends the Left Side Impact Sensor 1 Internal message to the Occupant Restraint Controller (ORC).

- Set Condition:
This DTC will set if the ORC receives an internal DTC from the Left Side Impact Sensor 1.





Diagnostic Test

1. DETERMINE ACTIVE OR STORED FAULT CODE
Turn the ignition on.

NOTE: Ensure the battery is fully charged.

IS the DTC: B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL active?

Yes

- Go to 2

No

- Go to 4


2. VERIFY OPERATION OF THE LEFT SIDE IMPACT SENSOR 1.
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Replace the Left Side Impact Sensor 1.
Reconnect the vehicle wire harness to the sensor.
Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

Use the scan tool and erase the stored codes in all airbag system modules.
Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.
Wait one minute, and read active codes.
Did the active DTC: B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL return?

Yes

- Go to 3

No

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

- Repair is complete.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test



3. REPLACE THE OCCUPANT RESTRAINT CONTROLLER
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.

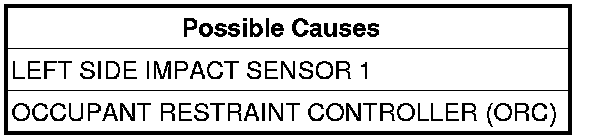

If there are no possible causes remaining, view repair.

Repair

- Replace the Occupant Restraint Controller.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test



4. TEST FOR AN INTERMITTENT CONDITION
With the scan tool, record and erase all DTC from all Airbag modules.
If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
The following additional checks may assist you in identifying a possible intermittent problem.
Reconnect any disconnected components and harness connector.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid serious or fatal injury, maintain a safe distance from all airbags while performing the following steps.

Wiggle the wiring harness and connectors of the related airbag circuit or component.
If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
If only stored codes return continue the test until the problem area has been isolated.
In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTC present?

Yes

- Diagnose and repair the DTC(s).

No

- No problem found at this time. Erase all codes before returning vehicle to customer.
