B1785

B1785-STOP LAMP CONTROL CIRCUIT HIGH





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
- With the Stop Lamps Activated.
- Set Condition:
- When the TIPM detects a HIGH condition.





Diagnostic Test

1. INTERMITTENT CONDITION
Turn the ignition on.
With the Scan Tool, clear all TIPM DTC's.
Turn the Stop Lamps on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B1785-STOP LAMP CONTROL CIRCUIT HIGH?

Yes

- Go to 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

2. STOP LAMP BULBS
Turn the ignition off.
Inspect the Left and Right Stop Lamp Bulb Assemblies.
Are the inoperative bulbs OK?

Yes

- Go to 3

No

- Replace the Inoperative bulb or bulbs.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

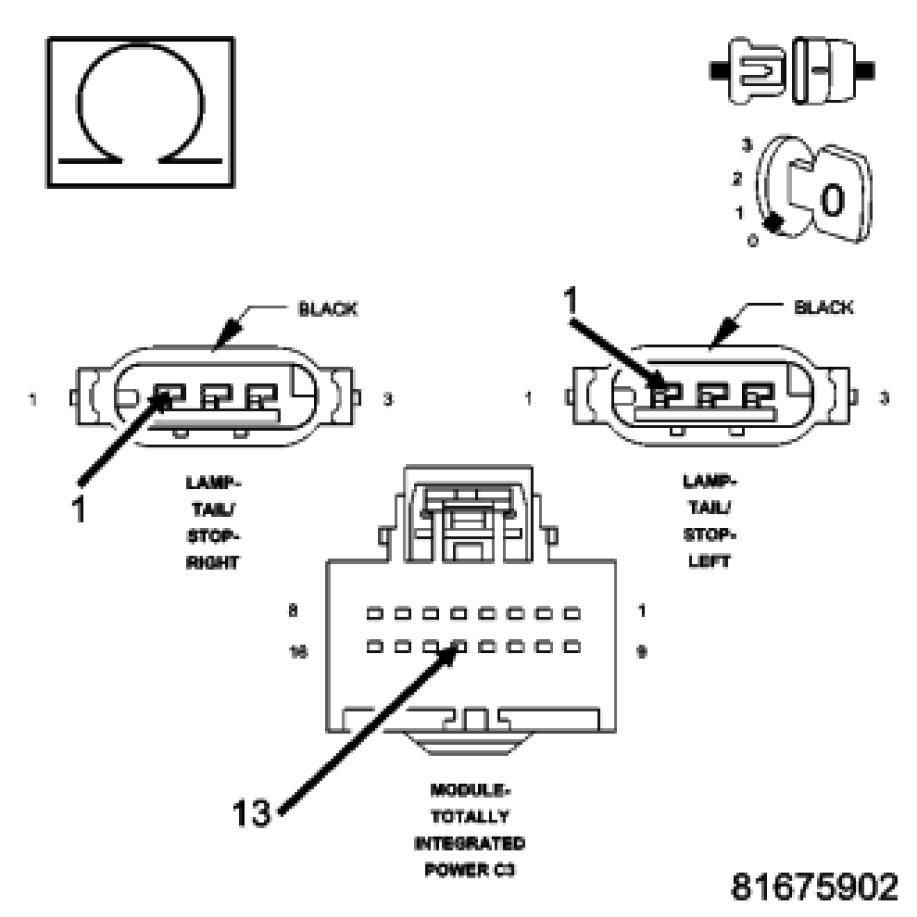

3. (L55) STOP LAMP CONTROL CIRCUIT OPEN




Turn the ignition off.
Disconnect the TIPM C3 harness connector.
Disconnect the Left and Right Stop Lamp harness connectors.
Measure the resistance of the (L55) Stop Lamp Control circuit.
Is the resistance above 5.0 ohms?

Yes

- Repair the (L55) Stop Lamp Control circuit for an open condition.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go to 4

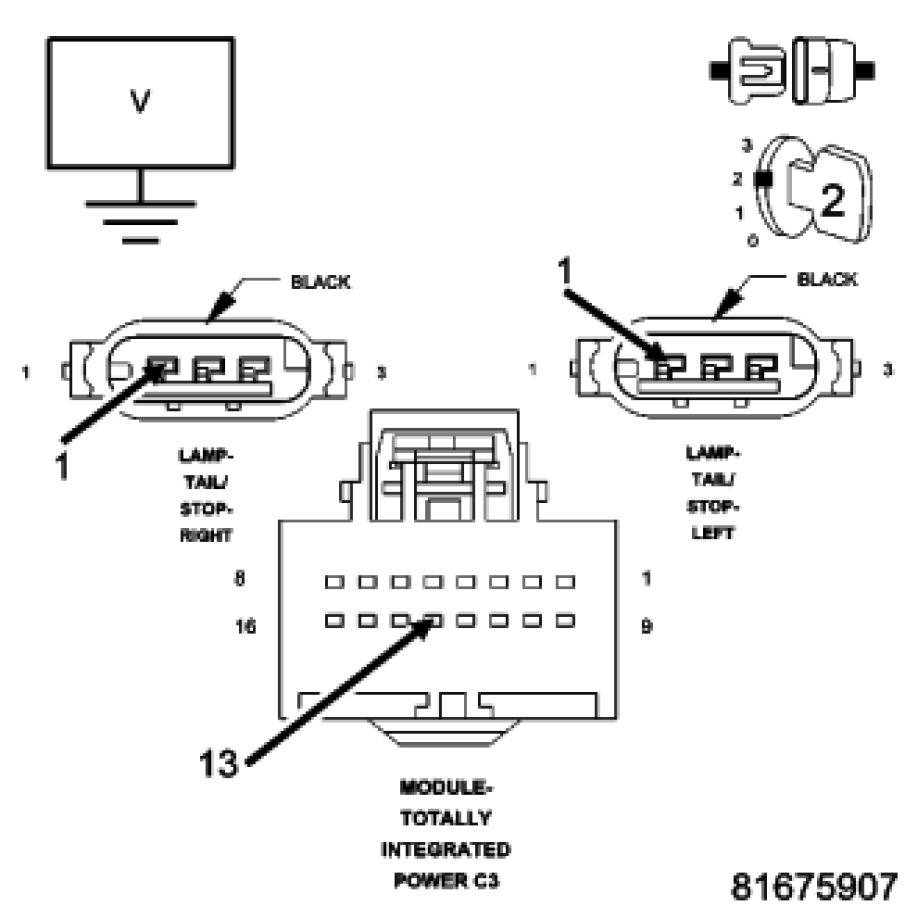

4. (L55) STOP LAMP CONTROL CIRCUIT SHORTED TO VOLTAGE




Turn the ignition off.
Disconnect the TIPM C3 harness connector.
Disconnect the Left and Right Stop Lamp harness connectors.
Turn the ignition on.
Measure for voltage on the (L55) Stop Lamp Control circuit.
Is the voltage above 10.0 volts?

Yes

- Repair the (L55) Stop Lamp Control circuit for a short to voltage condition.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
