Radio

B143F-MICROPHONE 2 CIRCUIT HIGH (RADIO)





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on.

- Set Condition:
The Hands Free Module detects a fault in any of the microphone circuits.





Diagnostic Test

1. CHECK FOR ACTIVE DTC
With the scan tool, read the active DTC's.
Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
Attempt to make a phone call with the system.
With the scan tool, read the active DTC's.
Does the scan tool display this DTC as active?

Yes

- Go to 2

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.


2. INSIDE REARVIEW MIRROR




Turn the ignition off.
Disconnect the Rearview Mirror harness connector.
Turn the ignition on.
With the scan tool, read the active DTC's.
Does the scan tool display this DTC as active?

Yes

- Go to 3

No

- Replace the Rearview Mirror.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

3. (X722) MICROPHONE 2 IN (+) CIRCUIT SHORTED TO VOLTAGE




Turn the ignition off.
Disconnect the Radio C2 harness connector.
Turn the ignition on.
Measure the voltage of the (X722) Microphone 2 IN (+) circuit.
Is the voltage above 1.0 volt?

Yes

- Repair the (X722) Microphone 2 IN (+) circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- Go to 4

4. (X722) MICROPHONE 2 IN (+) CIRCUIT OPEN




Turn the ignition off.

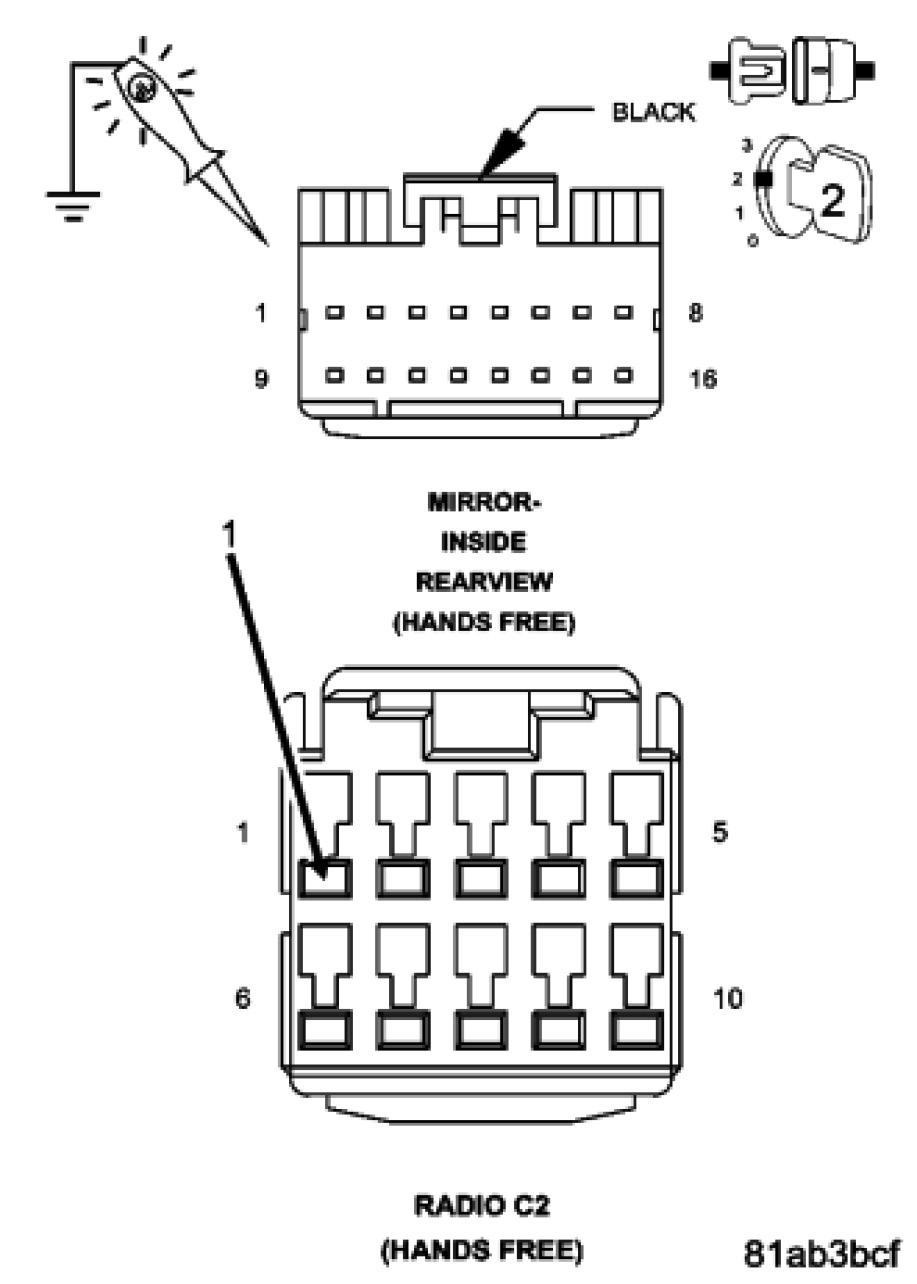

Measure the resistance of the (X722) Microphone 2 IN (+) circuit between the Radio C2 connector and the inside rearview mirror connector.
Is the resistance below 5.0 ohms?

Yes

- Replace the Radio.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- Repair the (X722) Microphone 2 IN (+) circuit for an open.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.
