Rear

INSTALLATION

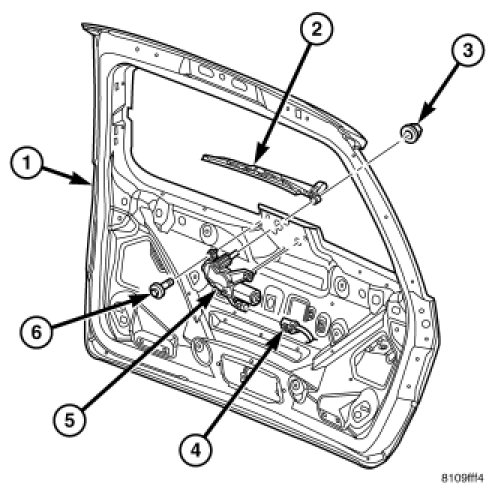

1. Position the rear wiper motor (5) into position on the liftgate (1) and install the three rear wiper motor mounting screws (6). Tighten screws to 6 Nm (55 in. lbs.).

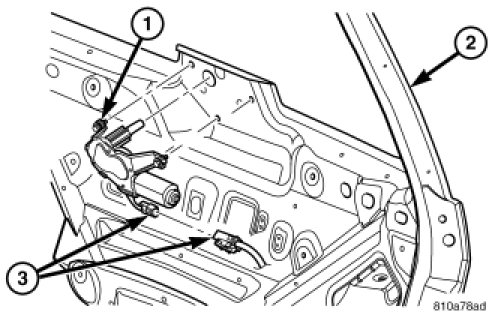

2. Connect the rear wiper motor electrical connector (3).
3. Install the liftgate trim panel Liftgate Trim Panel - Installation.
4. Install the rear wiper arm Wiper Arms - Installation.
5. Connect the battery negative cable.
