Front

INSTALLATION

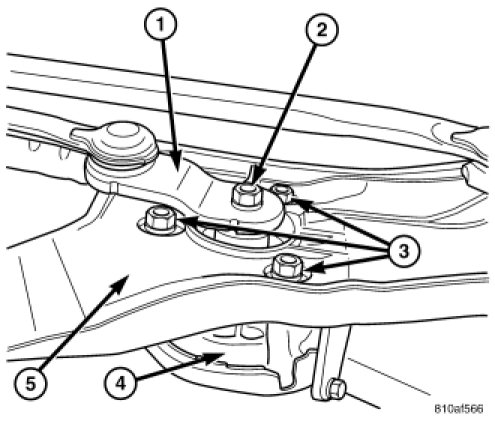

1. Position the wiper motor (4) into wiper module and install the three front wiper motor mounting bolts (3).
2. Press the socket and ball joint together on end of bell crank (1).




3. Install the wiper module (1) Wiper Module - Installation.
4. Connect the battery negative cable.
5. Close hood.
