Motor-Wiper-Front

Component ID: 209
Component : MOTOR-WIPER-FRONT

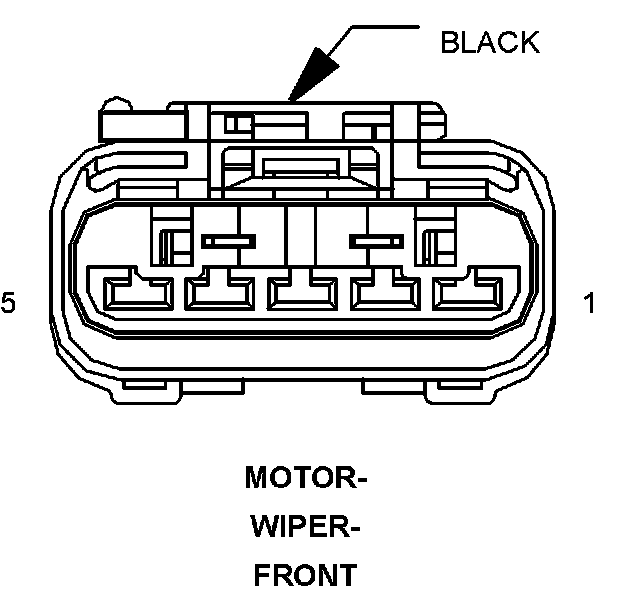

Connector:
Name : MOTOR-WIPER-FRONT
Color : BLACK
# of pins : 5




Pin Circuit Description
1 Z103 12BK/WT GROUND
2 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
3 - -
4 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
5 W4 12BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT

Component Location - 1




Component Location - 6

3.8L:
