Rear

INSTALLATION

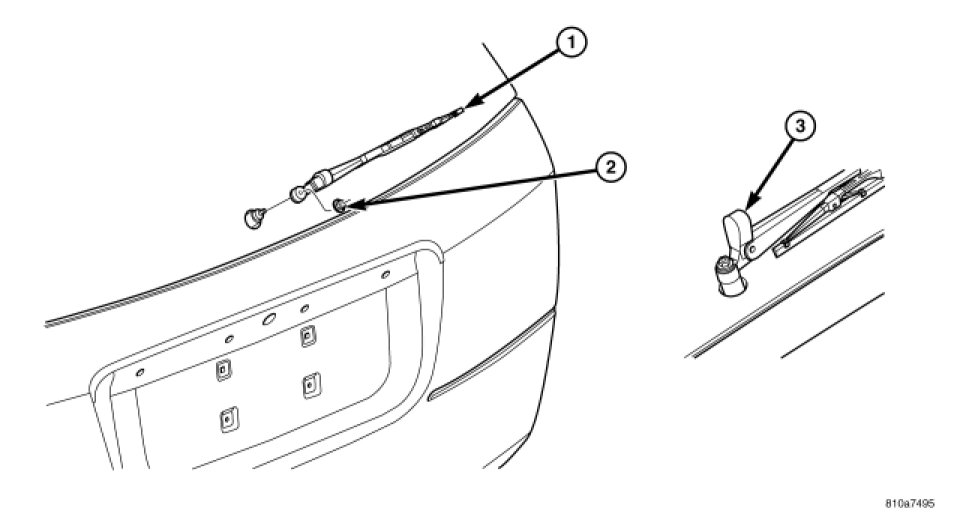

1. Place the rear wiper arm (1) on the rear wiper motor shaft. Align the wiper blade with lower EBL line.
2. Install the rear wiper arm retaining nut (2). Tighten nut to 11.86 Nm (105 in. lbs.).
3. Flip down the rear wiper arm nut cover (3).
