Front

INSTALLATION

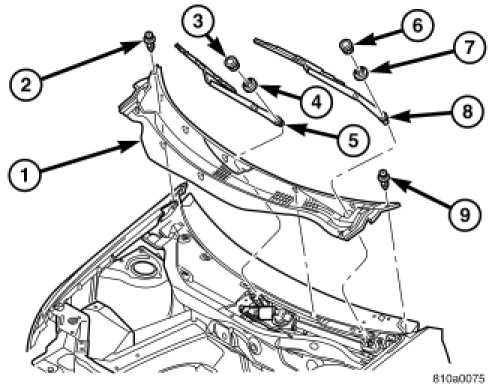

1. Position the wiper arm (5 or 8) onto the wiper arm pivot in approximate position with the tips of the wiper blades on the tick marks at the bottom of the windshield.
2. Install the nut 4 or 7) holding wiper arm (5 or 8) to the wiper pivot Tighten nut to 18 Nm (160 in. lbs.).
3. Install the retaining nut cover (3 or 6) by firmly pressing down on cover over wiper pivot.
4. Check wiper arm adjustment Wiper Arms - Front Wiper Arm Alignment.
