Washer Nozzle - Removal
Washer Nozzle - Removal
REMOVAL
1.
Open hood.
2.
Disconnect the washer hose connected to the nozzle being removed or replaced.
3.

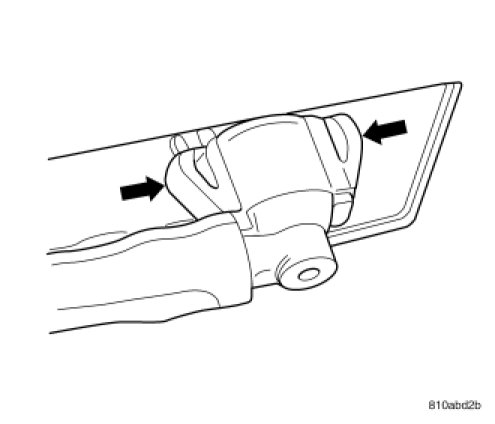

Push in on the sides of the nozzle and push through hood panel to remove.
