Washer Reservoir - Installation

INSTALLATION

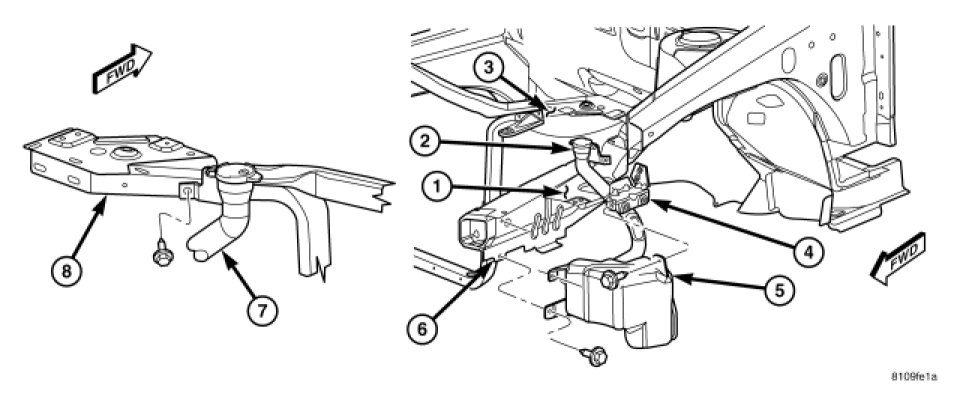

1. Drain fluid into new reservoir (5).
2. Transfer sensor. Make sure to use a new grommet.
3. Transfer pumps. Make sure to use a new grommet.
4. Slip reservoir (5) onto filler tube (7).
5. Install the three reservoir mounting bolts.
6. Connect the hoses and electrical connectors to the reservoir (5).
7. Engage lower fascia to grille clips.
8. Install the upper bolts at ends (ears).
9. Install the lower fascia push pins.
10. Install the screws at the left wheel opening splash shield.
11. Remove vehicle off of hoist.
12. Connect the battery negative cable.
13. Top off washer fluid.
14. Close hood.
