Windshield Washer Pump: Locations

Component ID: 217
Component : PUMP-WASHER-WINDSHIELD

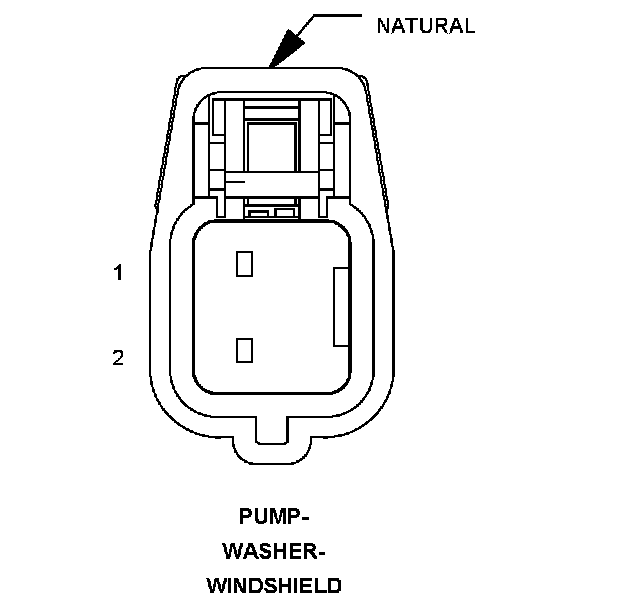

Connector:
Name : PUMP-WASHER-WINDSHIELD
Color : NATURAL
# of pins : 2




Pin Circuit Description
1 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
2 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL

Component Location - 6

3.8L:

Component Location - 9

4.0L:
